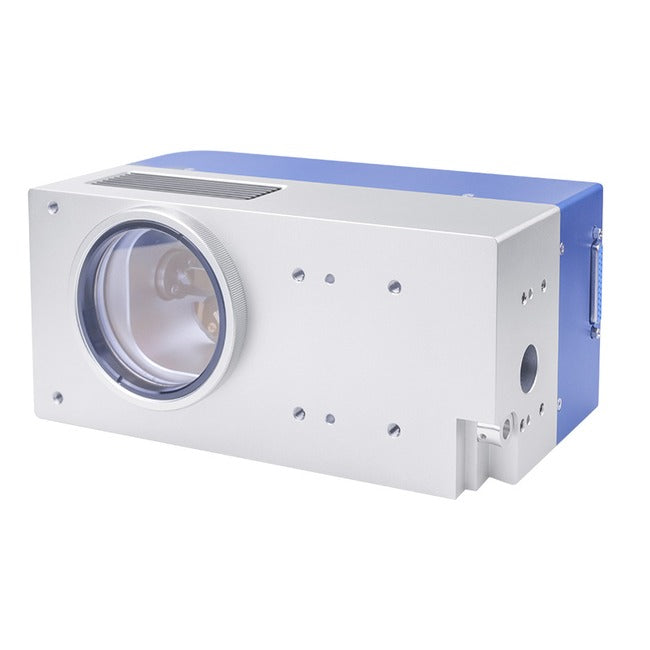

A 3D laser scanning head is a laser beam control device built for three-dimensional laser processing. It lets the beam follow different surface contours and hold focus at varying positions, which suits curved and uneven workpieces as well as large-format work. This head combines high-performance galvo motors with a dynamic axis for fast, precise scanning over three-dimensional surfaces and large working areas, and it is used in large-format precision laser marking, laser engraving, deep laser engraving, laser cutting and laser welding. UV, infrared and green laser versions are available, and the TCP/IP interface lets one computer drive several 3D galvo scanning systems at once.
Key Features:
- Combines galvo motors and voice coil motors to achieve fast scanning of three-dimensional surfaces and large working areas.
- Uses the TCP/IP communication protocol for computer communication, allowing one computer to control multiple 3D galvo scanning systems simultaneously.
- The optical path is designed to optimize laser focusing performance across different scanning areas, ensuring a minimum laser spot size and more concentrated energy within different working ranges.
- Highly integrated system design for easy installation and operation.
Specifications of 3D Laser Scanning Head
| Parameter | Specifications |
|---|---|
| Product | 3D Laser Scanning Head |
| Type | Three-axis galvanometer scan head with dynamic axis (3D) |
| Bands | UV (355 nm), infrared (1064 nm) and green (532 nm) |
| Aperture | 14 mm 2D galvo scan head (Z-axis module input: 9 / 7 / 3.5 mm) |
| Interface | TCP/IP - one computer can control multiple 3D galvo scanning systems |
| Typical Applications | Large-format precision marking, engraving, deep engraving, cutting and welding |
| Parameter | UV Laser | IR | Green |
|---|---|---|---|
| Wavelength (nm) | 355 | 1064 | 532 |
| Coating | Anti-Reflective Coating | ||
| Aperture of 2D Galvo Scan Head (mm) | Φ14 | ||
| Incident Spot Size of Z-axis Module (mm) | 9 | 7 | 3.5 |
| Scan Angle (°) | ±22 | ||
| Repeatability (µrad) | 5 | ||
| Max. Gain Drift (ppm/K) | 12 | ||
| Long-term Drift Over 8 h (mrad) | 0.3 | ||
| Max. Offset Drift (µrad/K) | 30 | ||
| Maximum Processing Speed (characters/s) | 650 | ||
| Small Step Response Time (ms) | ≤ 0.35 | ||
| Operation Temperature (°C) | 0 ~ +40 | ||
| Storage Temperature (°C) | -10 ~ +60 | ||
| Humidity | ≤ 75 %, non-condensing | ||
| Power Requirements | ±(15 + 1.5) VDC, max. 10 A | ||
| Weight (kg) | 8 | ||
| Dimensions (mm) | 324 × 140 × 181.5 | ||
