Model: HJK976BN1RN-200.0W (ordering code K976BN1RN-200.0WN0N-10522F20)

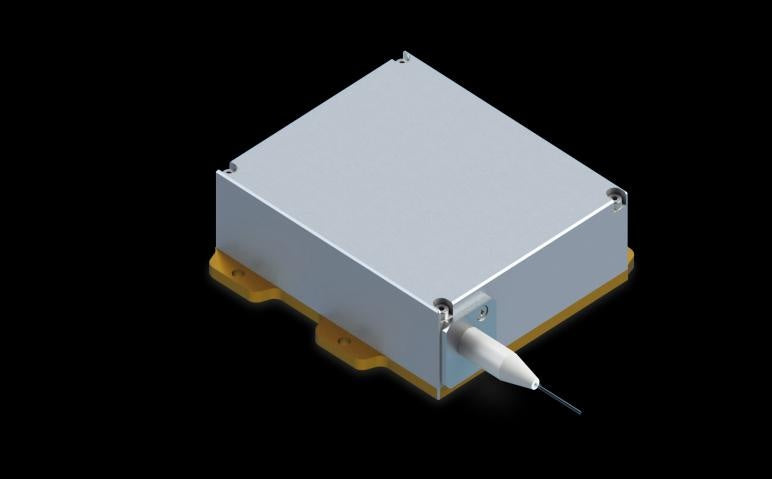

The HJK976BN1RN-200.0W is a 976 nm wavelength-stabilized, high power fiber-coupled diode laser delivering 200 W into a 105 µm core, 0.22 NA fiber terminated as bare fiber or HP-SMA905. On-chip wavelength stabilization keeps more than 90 % of the power inside the 974.5-977.5 nm band, making it a stable pump source for high power fiber lasers. The package integrates an aiming beam, a monitor photodiode and a thermistor for temperature control.
Key Features:
- 976 nm wavelength
- 200 W output power
- 105 µm fiber core diameter
- 0.22 NA
Applications: Laser pumping; Scientific research
Specifications of HJK976BN1RN-200.0W
| Parameter | Value |
|---|---|
| CW Output Power (W) | 200 |
| Center Wavelength (nm) | 976 ± 1 |
| Spectral Width, FWHM (nm) | 0.7 (max. 1.0) |
| Wavelength Shift with Temperature (nm/degC) | 0.02 |
| Wavelength Shift with Current (nm/A) | 0.03 |
| Electrical-to-Optical Efficiency (%) | 47 |
| Threshold Current (A) | 0.8 |
| Operating Current (A) | 14 (max. 16) |
| Operating Voltage (V) | 31 (max. 33) |
| Slope Efficiency (W/A) | 15 |
| Core Diameter (µm) | 105 |
| Cladding Diameter (µm) | 125 |
| Numeric Aperture (NA) | 0.22 |
| Fiber Length (m) | 2 |
| Fiber Loose Tubing Diameter (mm) | 0.9 |
| Minimum Bending Radius (mm) | 50 |
| Fiber Termination | Bare fiber / HP-SMA905 |
| Feedback Isolation - Wavelength Range (nm) | 1020 ~ 1200 |
| Feedback Isolation - Isolation (dB) | 30 |
| ESD (V) | 500 |
| Storage Temperature (degC) | -20 ~ +70 |
| Lead Soldering Temperature (degC) | 260 |
| Lead Soldering Time (s) | 10 |
| Operating Case Temperature (degC) | 23 / 25 / 27 |
| Relative Humidity (%) | 15 ~ 75 |
Notes:
- (1) Data measured at 200 W output @ 25 °C.
- (2) Wavelength-stabilized: percentage of power in the 974.5 nm to 977.5 nm band ≥ 90 %.
- (3) A non-condensing environment is required for operation and storage.
- (4) Operating temperature defined by the package case; acceptable range 23 °C ~ 27 °C.
Data Sheet: HJK976BN1RN-200.0W (PDF)
200 W wavelength-stabilized 976 nm pump module, 105 µm / 0.22 NA fiber. Tell us your required power and fiber termination and we will quote.
