976 nm 60W Fiber Coupled Diode Laser HJK976AA5RN-60.00W
976 nm 60W Wavelength-Stabilized Fiber Coupled Diode Laser
Model: HJK976AA5RN-60.00W (ordering code HJK976AA5RN-60.00WY1N-10522A10ENA)

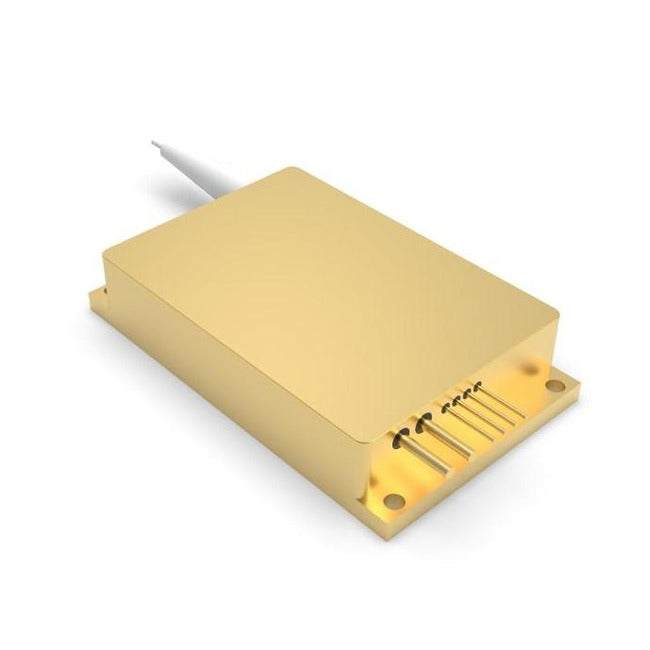

The HJK976AA5RN-60.00W is a 976 nm wavelength-stabilized fiber-coupled diode laser delivering 60 W from a 105 µm core, 0.22 NA fiber. Stabilization keeps more than 90 % of the power inside the 974.5-977.5 nm band, making it a stable pump source for fiber lasers. The package integrates a thermistor and a monitor photodiode, with built-in feedback protection across 1020-1200 nm.
Key Features:
- 976 ± 0.5 nm wavelength
- 60 W output power
- 105 µm fiber core diameter
- 0.22 NA
- 1020 nm ~ 1200 nm feedback protection
Applications: Fiber laser pumping; Scientific research
Specifications of HJK976AA5RN-60.00W
| Parameter | Value |
|---|---|
| CW Output Power (W) | 60.0 |
| Center Wavelength (nm) | 976 ± 0.5 |
| Spectral Width, FWHM (nm) | 0.5 (max. 0.7) |
| Wavelength Shift with Temperature (nm/°C) | 0.02 |
| Wavelength Shift with Current (nm/A) | 0.03 |
| Electrical-to-Optical Efficiency (%) | 50 |
| Threshold Current (A) | 0.9 |
| Operating Current (A) | 12.0 (max. 13.0) |
| Operating Voltage (V) | 11.0 (max. 14.0) |
| Slope Efficiency (W/A) | 6.0 |
| Core Diameter (µm) | 105 |
| Cladding Diameter (µm) | 125 |
| Numeric Aperture (NA) | 0.22 |
| Fiber Length (m) | 1.0 |
| Fiber Loose Tube (mm) | 0.9 mm diameter with 1.5 cm length, the rest are bare fiber |
| Minimum Bending Radius (mm) | 50 |
| Feedback Isolation - Wavelength Range (nm) | 1020 ~ 1200 |
| Feedback Isolation - Isolation (dB) | 30 |
| Thermistor (KΩ at 25 °C) | 10 ± 3 % |
| Photo Diode (µA) | 300 (max. 3000) |
| ESD (V) | 500 |
| Storage Temperature (°C) | -20 ~ +70 |
| Lead Soldering Temperature (°C) | 260 |
| Lead Soldering Time (s) | 10 |
| Operating Case Temperature (°C) | 20 / 22 / 24 |
| Relative Humidity (%) | 15 ~ 75 |
Notes:
- (1) Data measured at nominal output power @ 22 °C; a non-condensing environment is required for operation and storage.
- (2) Operating temperature defined by the package case. Acceptable operating range is 20 °C ~ 24 °C, but performance may vary.
- (3) Wavelength-stabilized: percentage of power in the 974.5 nm to 977.5 nm band ≥ 90 %.
Data Sheet: HJK976AA5RN-60.00W (PDF)
Wavelength-stabilized 976 nm pump module, 60 W from a 105 µm / 0.22 NA fiber. Tell us your required power and fiber configuration and we will quote.
