Analog Galvo Driver
Analog Galvo Driver

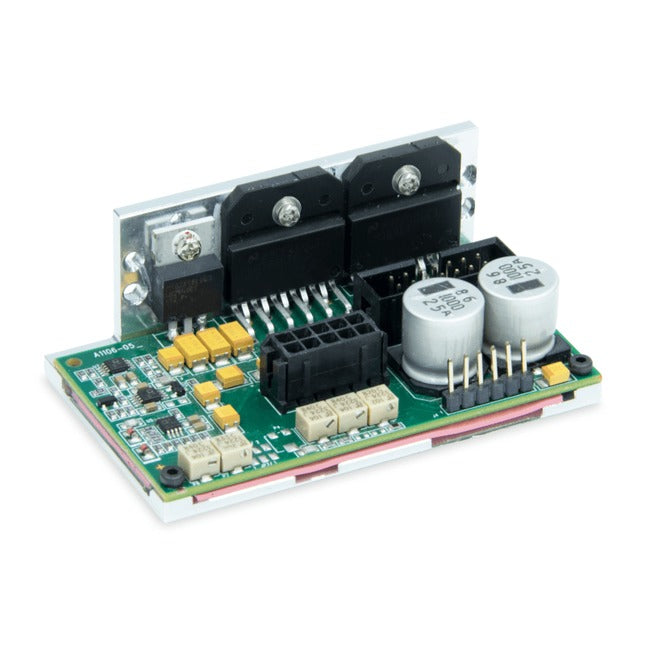

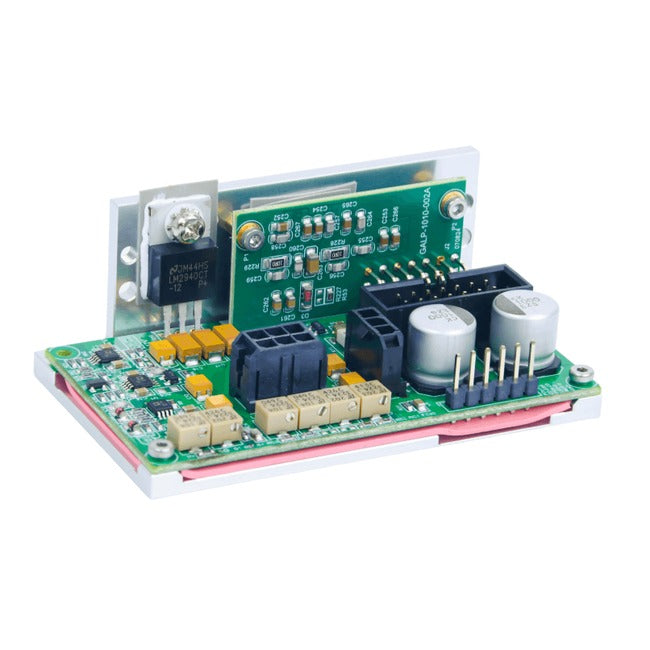

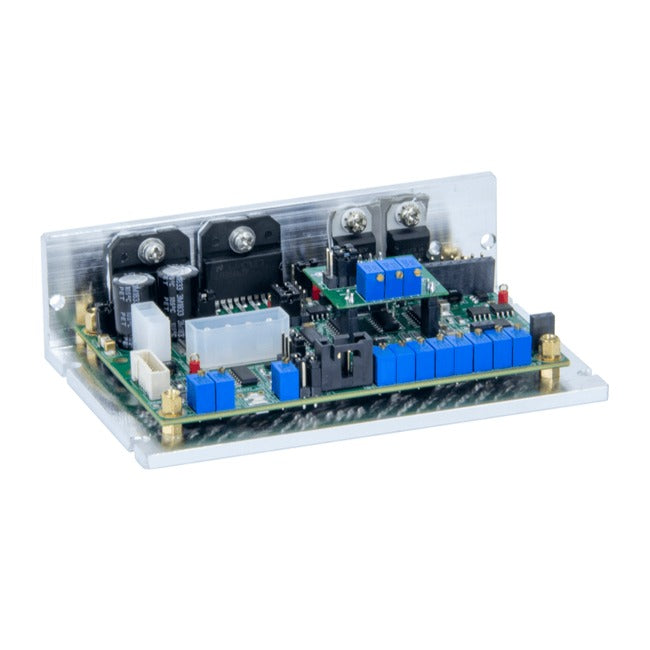

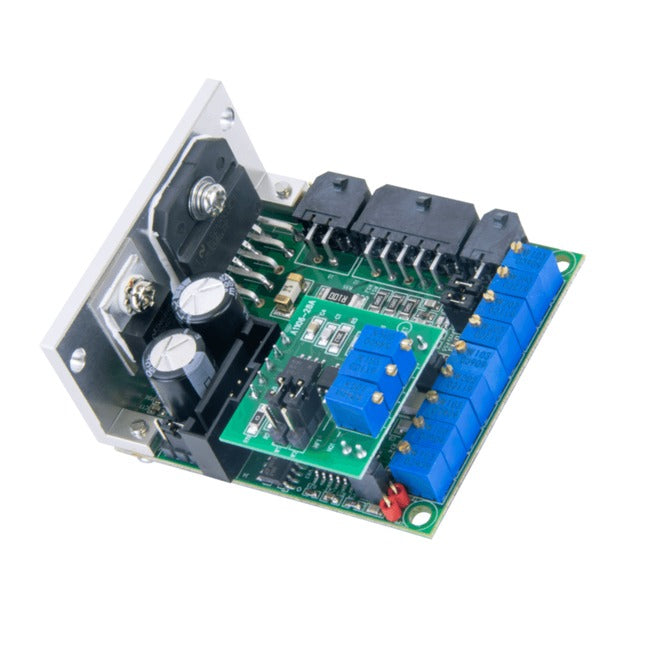

The Scanner Optics analog galvo driver board is designed for the full series of Scanner Optics photoelectric galvanometer motors. It uses the traditional PID closed-loop control mode for stable, reliable performance, supports analog signal input, and offers a variety of configurations: different power amplifier devices drive mirrors with loads from 3 mm to 50 mm for optimal dynamic performance. This meets the speed and accuracy requirements of high-end laser scanning applications.
Key Features:
- Based on PID control mode, stable performance, high precision, fast speed.
- Load size 3-50mm aperture mirrors.
- Compact size, for different application scenarios. A variety of different performance of the driver board optional.
- Rich I/O configurations. Support ±3V to ±10V analog signal input. Support for galvanometer position, error, speed and current signal output.
- Suitable for Scanner Optics UltraGalvo series and STGalvo series galvanometer scanners.
Specifications of Analog Galvo Driver
| Parameter | Specifications |
|---|---|
| Product | Analog Galvo Driver |
| Type | Analog galvanometer driver board with PID closed-loop control |
| Mirror Load | 3 mm to 50 mm aperture mirrors |
| Analog Signal Input | ±3 V to ±10 V |
| Signal Outputs | Galvanometer position, error, speed and current |
| Typical Applications | Laser welding, marking, drilling, cutting, micromachining, medical aesthetic, ophthalmic imaging and 3D printing |
| STServo Series | STServo I | STServo II | STServo III |
|---|---|---|---|
| Number of Axes | single | single | single |
| Analog Input Impedance | 200K ±1% ohms (Differential) 100K ±1% ohms (Single Ended) | 200K ±1% ohms (Differential) 100K ±1% ohms (Single Ended) | 200K ±1% ohms (Differential) 100K ±1% ohms (Single Ended) |
| Position Output Impedance | 1K ±1% ohms (for all other observation outputs) | 1K ±1% ohms (for all other observation outputs) | 1K ±1% ohms (for all other observation outputs) |
| Position Input Scale Factor | 0.5V/mech degree 1V/mech degree 2V/mech degree | 0.5V/mech degree 1V/mech degree 2V/mech degree | 0.5V/mech degree 1V/mech degree 2V/mech degree |
| Position Input Range | ±10V Max | ±10V Max | ±10V Max |
| Position Offset Range | ±5% | ±5% | ±5% |
| Digital Signal Input Range | 16bit DAC | 16bit DAC | 16bit DAC |
| Non Linearity of 16-Bit Digital Input | 0.006% | 0.006% | 0.006% |
| Position Output Scale Factor | 0.5V/degree, 1V/degree | 0.5V/degree, 1V/degree | 0.5V/degree, 1V/degree |
| Temperature Stability of Electronics | 20 ppm/°C | 20 ppm/°C | 20 ppm/°C |
| Power Supply Requirements | ±15V - ±28V | ±15V - ±28V | ±15V - ±28V |
| Maximum Drive Current Limit | 6A peak power supply and load dependent | 10A peak power supply and load dependent | 12A peak power supply and load dependent |
| Operating Temperature Range | 0-50°C | 0-50°C | 0-50°C |
| UltraServo Series | UltraServo Mini | UltraServo I | UltraServo II |
|---|---|---|---|
| Axes | single | single | single |
| Analog Input Impedance | 10K ±1% ohms (Single Ended) | 10K ±1% ohms (Single Ended) | 10K ±1% ohms (Single Ended) |
| Position Input Scale Factor | 0.5V/mech degree | 0.5V/mech degree | 0.5V/mech degree |
| Position Input Range | ±5V Max | ±5V Max | ±5V Max |
| Position Offset Range | ±5% | ±5% | ±5% |
| Non Linearity of 16-Bit Digital Input | 0.006% | 0.006% | 0.006% |
| Position Output Scale Factor | 0.5V/degree | 0.5V/degree | 0.5V/degree, 1V/degree |
| Temperature Stability of Electronics | 20 ppm/°C | 20 ppm/°C | 20 ppm/°C |
| Power Supply Requirements | ±15V | ±15V | ±15V |
| Maximum Drive Current Limit | 6A peak (power supply and load dependent) | 10A peak (power supply and load dependent) | 10A peak (power supply and load dependent) |
| Operating Temperature Range | 0–50°C | 0–50°C | 0–50°C |
Data Sheet: Analog Galvo Driver (PDF)
STServo and UltraServo series driver boards, for 3 mm to 50 mm aperture mirrors. Tell us your laser type and application and we will quote the right board.
