266 nm LD Pumped All-Solid-Sate Acousto-Optic Q-switched Pulsed Laser AO-266A
$1,000,000.00
Description: All solid state AOM Q-switched laser at 266 nm has the features of high peak power, high repetition rate and short pulse duration.
Applications: laser radar, scientific research, precision research
Model #: AO-266A
| Wavelength | 266±1 |
| Operation Mode | Acousto-Optic Q-switched |
| Average Power | 100 @30kHz / 200 @30kHz |
| Single Pulse Energy | ~4 @30kHz / ~7 @30kHz |
| Repetition Rate | 20-100kHz / 20kHz-200kHz |
| Pulse Width | ~10 @30kHz |
| Peak Power | ~0.4 @30kHz / ~1 @30kHz |
| Power Stability | <2%, <1% |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle | <3.5 |
| Beam Diameter at the Aperture (1/e, mm) | ~1 |
| M2 | <1.2 |
| Polarization Ratio | >100:1 Horizontal |

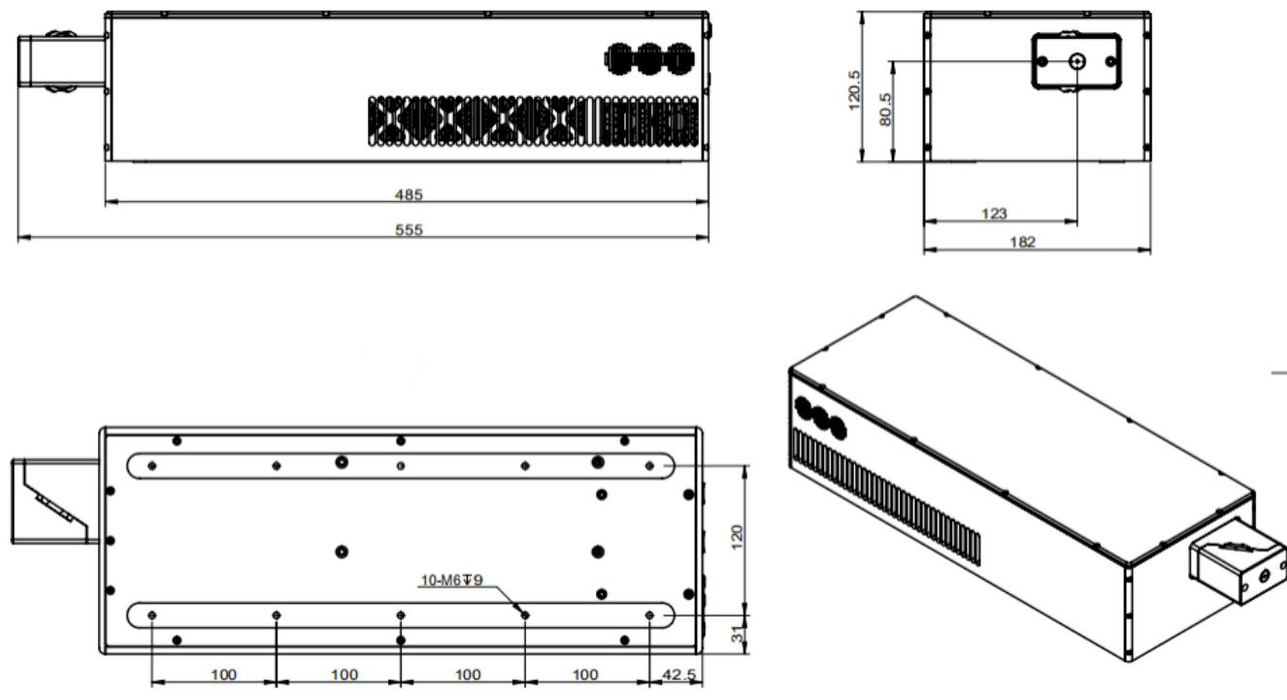

| Beam Height from Base Plate | 80.5 |
| Warm-Up Time | <10 |
| Cooling Method | Air cooled |
| Operating Temperature | 10-35 |
| Operating Voltage | 12V/25A |
| Expected Lifetime | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-266A
Please request a quotation for a real price and lead time.
