AO-DF-496 496 nm LD Pumped All-Solid-State Q-Switched Blue Laser
$1,000,000.00
Description: All solid state Q-switched blue laser at 496nm has the features of ultra compact, long lifetime and easy operating.
Applications: communication, medical treatment, scientific research
Model #: AO-DF-496
| Model | AO-DF-496 |
| Wavelength (nm) | 496±1 |
| Operating Mode | Acousto-Optic Q-switched |
| Repetition Rate (kHz) | 4 |
| Average Power (mW) | 1-400 @ 4 kHz |
| Pulse Duration (ns) | ~20 @ 4 kHz & 400 mW |
| Single Pulse Energy (µJ) | 1-100 |
| Peak Power (W) | 50-500 |
| Power Stability (rms, over 4 hours) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <5 |
| Beam Diameter at the Aperture (mm) | ~5 |

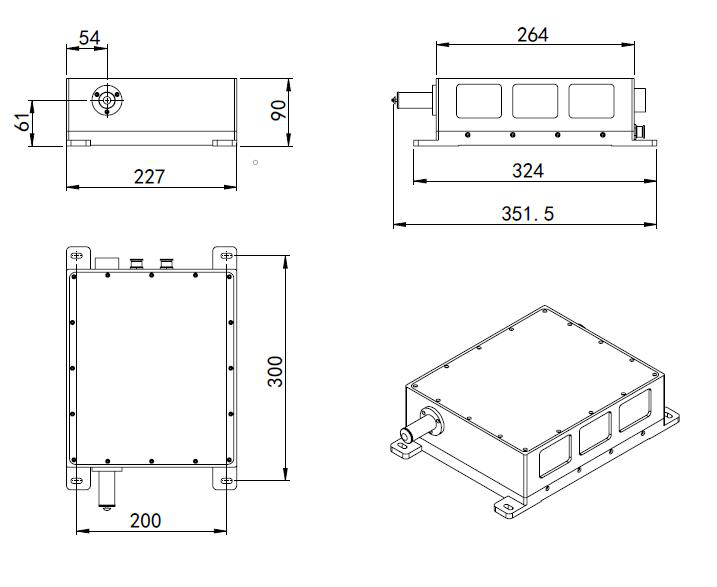

| Beam Height from Base Plate (mm) | 61 |
| Polarization Ratio | >100:1 |
| Warm-Up Time (minutes) | <10 |
| Cooled Method | Water cooled |

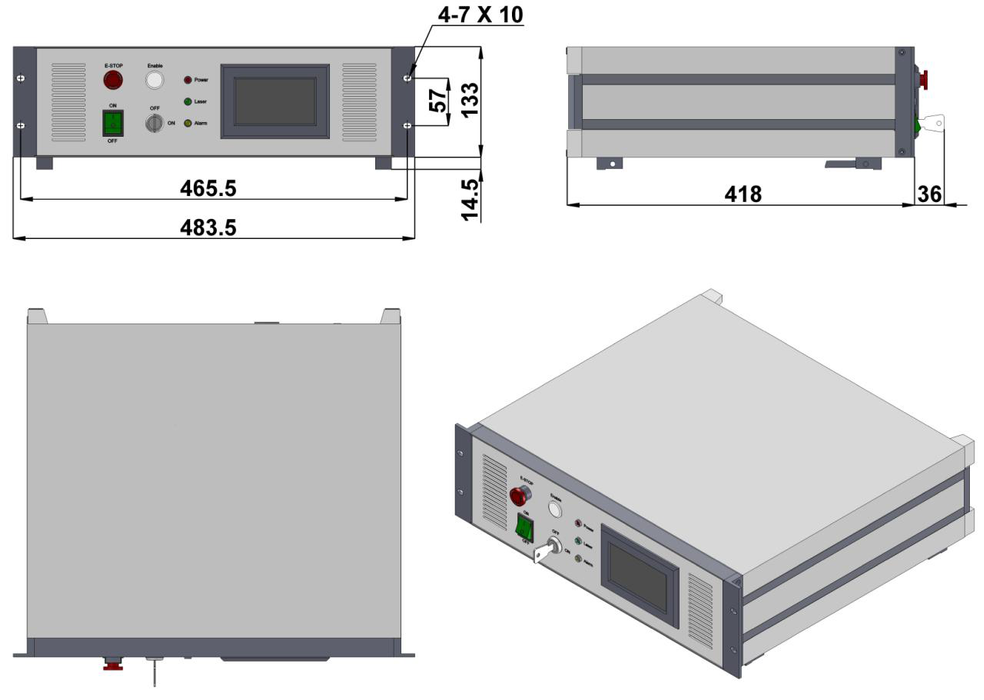

| Power Supply (90-264VAC) | PSU-AOM (3U) |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-DF-496
Please request a quotation for a real price and lead time.
