AO-K-560 560 nm LD Pumped All-Solid-State AOM Q-Switched Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at a wavelength of 560nm has the features of high peak power and short pulse duration.
Applications: photoacoustic imaging, laser marking, scientific experiment
Model #: AO-K-560
| Model | AO-K-560 |
| Wavelength (nm) | 560±1 |
| Operating Mode | Actively Q-switched |
| Average Power (mW) | 500@5kHz / 300@1kHz / 2000@5kHz / 3000@20kHz / 5000@100kHz |
| Single Pulse Energy (µJ) | >100@5kHz / >300@1kHz / >400@5kHz / >150@20kHz / >50@100kHz |
| Repetition Rate¹ | 1-10kHz / 20-50 / 30-100 |
| Pulse Duration (ns)² | ~13@5kHz / ~5@1kHz / ~10@5kHz / ~5@20kHz / ~5@100kHz |
| Peak Power (kW) | ~8@5kHz / ~60@1kHz / ~40@5kHz / ~30@20kHz / ~10@100kHz |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3%, <2% |
| Beam Divergence, Full Angle (mrad) | <4 |
| Beam Diameter at the Aperture (1/e², mm) | ~1 |
| Polarization Ratio | >100:1, Vertical |

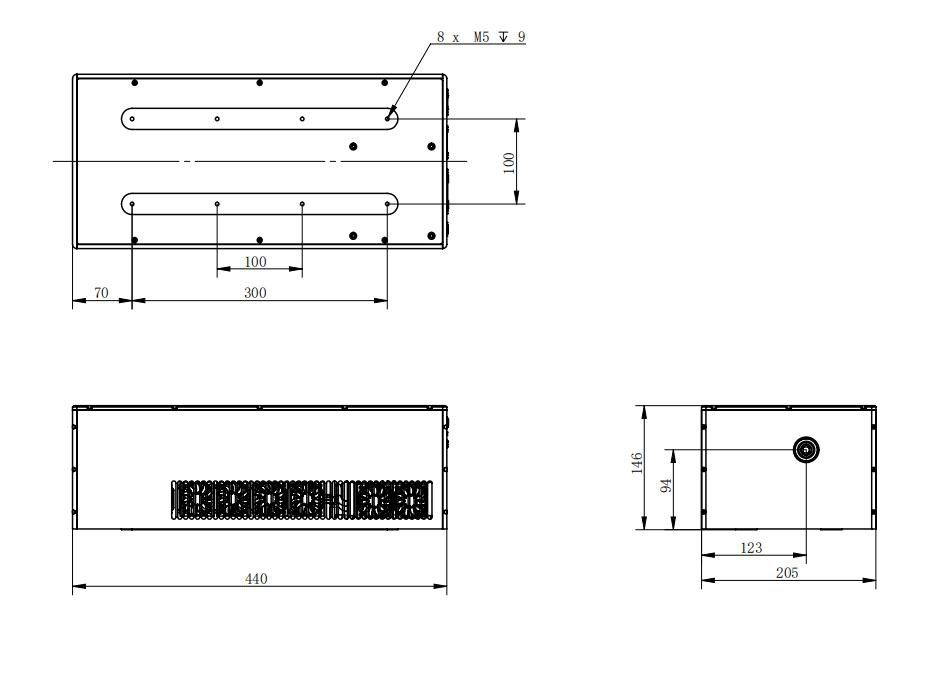

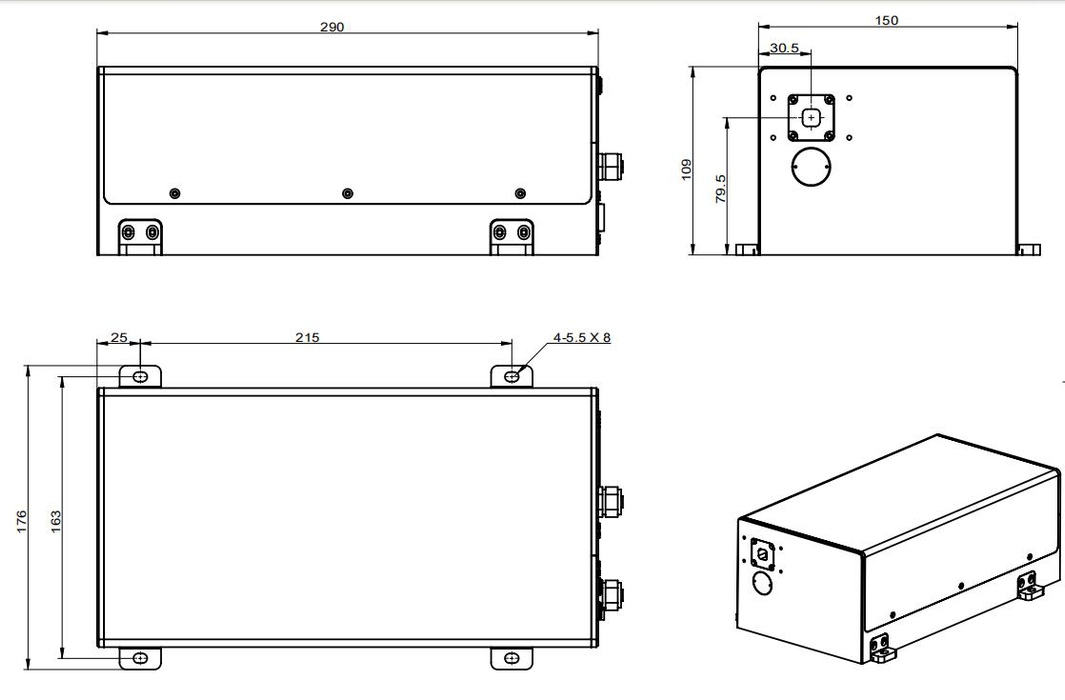

| Beam Height from Base Plate (mm) | 94 / 79.5 |
| Warm-Up Time (minutes) | <10 |
| Cooled Method | Air cooled (AO-K-560-I) / Water cooled (AO-K-560-II) |
| Operating Temperature (℃) | 15-35 |
| Operating Voltage (VDC) | 24V/20.9A |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-K-560
Please request a quotation for a real price and lead time.
