AO-Mini-946 946 nm LD Pumped All-Solid-State AOM Q-Switched Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 946 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in marking, carving, measure, research and so on.
Applications: marking, carving, measure, research
Model #: AO-Mini-946
| Model | AO-Mini-946 |
| Wavelength (nm) | 946±1 |
| Operating Mode | Actively |
| Average Power (mW) | 100 @1kHz / 500 @5kHz |
| Single Pulse Energy (µJ) | ~150 @100Hz / ~150 @1kHz / ~100 @5kHz |
| Repetition Rate¹ | 1Hz-5kHz |
| Pulse Duration (ns)² | 20-50 |
| Peak Power (kW) | ~5 @100Hz / ~5 @1kHz / ~2 @5kHz |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3%, <2% |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Beam Diameter at the Aperture (1/e², mm) | ~1 |
| M² | <1.5 |
| Warm-Up Time (minutes) | <10 |

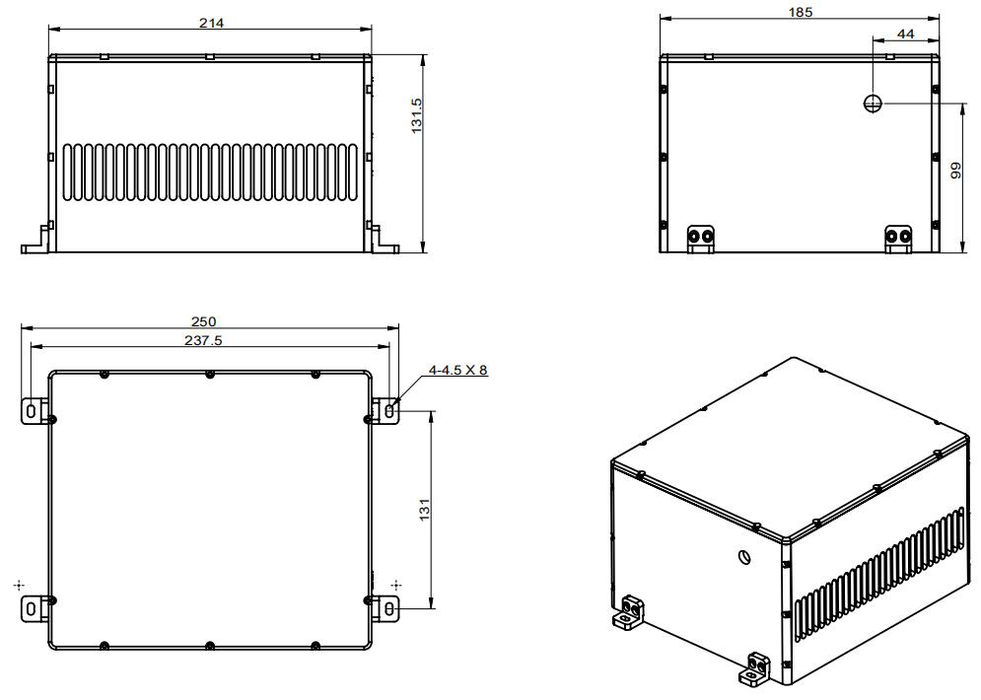

| Beam Height from Base Plate (mm) | 99 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |

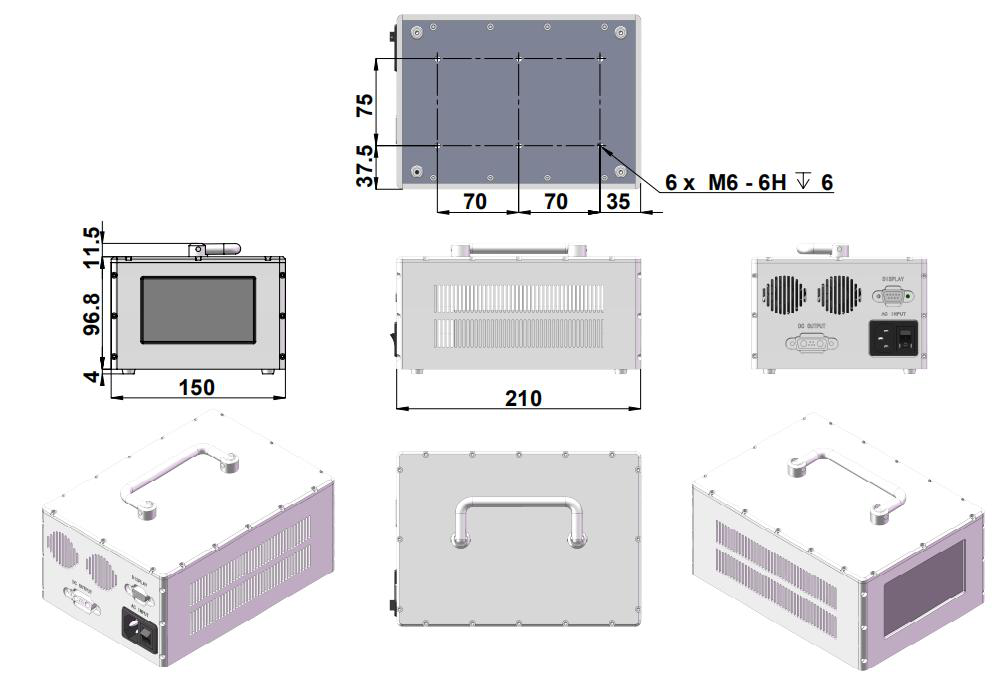

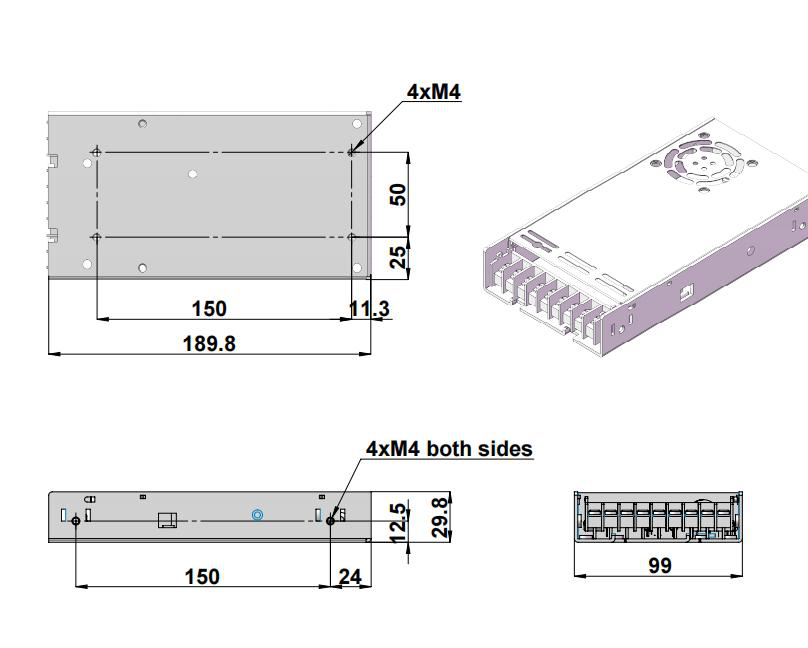

| Power Supply | PSU-12 (100-240VAC) optional / PSU-12-P3 (100-240VAC) optional |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-Mini-946
Please request a quotation for a real price and lead time.
