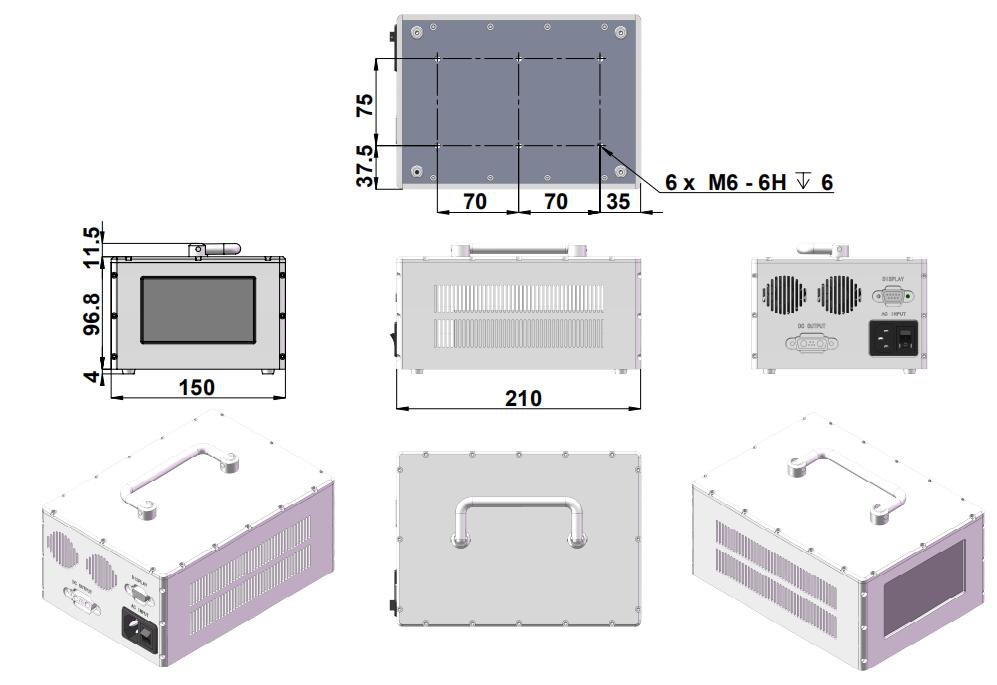

AO-Mini-E-1064 1064 nm Miniature LD Pumped All-Solid-State AOM Q-Switched Laser
$1,000,000.00
Description: Compact all solid state AOM Q-switched laser at 1064 nm with high peak power and short pulse duration.
Applications: marking, carving, measurement, research and so on
Model #: AO-Mini-E-1064
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Average Power (mW) | 200 @10 kHz / 500 @50 kHz / 3000 @300 kHz |
| Single Pulse Energy (µJ) | >200 @10 kHz / >10 @50 kHz / >10 @300 kHz |
| Rep. Rate | 1-10 kHz / 20-200 kHz / 100-300 kHz |
| Pulse Duration (ns) | ~20 @10 kHz / ~15 @50 kHz / ~15 @300 kHz |
| Peak Power (kW) | ~10 @10 kHz / ~0.5 @50 kHz / ~0.5 @300 kHz |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1% |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle (mrad) | <4.5 |
| Beam Diameter at the Aperture (1/e2, mm) | ~0.7 |
| M2 | <1.2 |
| Beam Height from Base Plate (mm) | 72.5 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-Mini-E-1064
Please request a quotation for a real price and lead time.
