355 nm LD Pumped All-Solid-Sate Acousto-Optic Q-switched Pulsed Laser AO-S-355
$1,000,000.00
Description: All solid state laser has the features of high peak power, high repetition rate and short pulse duration.
Applications: material processing, measure, scientific research
Model #: AO-S-355
| Model | AO-S-355 |
| Wavelength | 355 nm |
| Operation Mode | Pulsed (Q-switched) |
| Average Power | 1-100 mW |
| Single Pulse Energy | 1-40 µJ |
| Pulse Width | 5-10 ns @<10kHz |
| Peak Power | 0.2-8 kW |
| Repetition Rate | 1Hz-20kHz |
| M2 | <1.2 |
| Beam Divergence, Full Angle | <1.5 mrad |

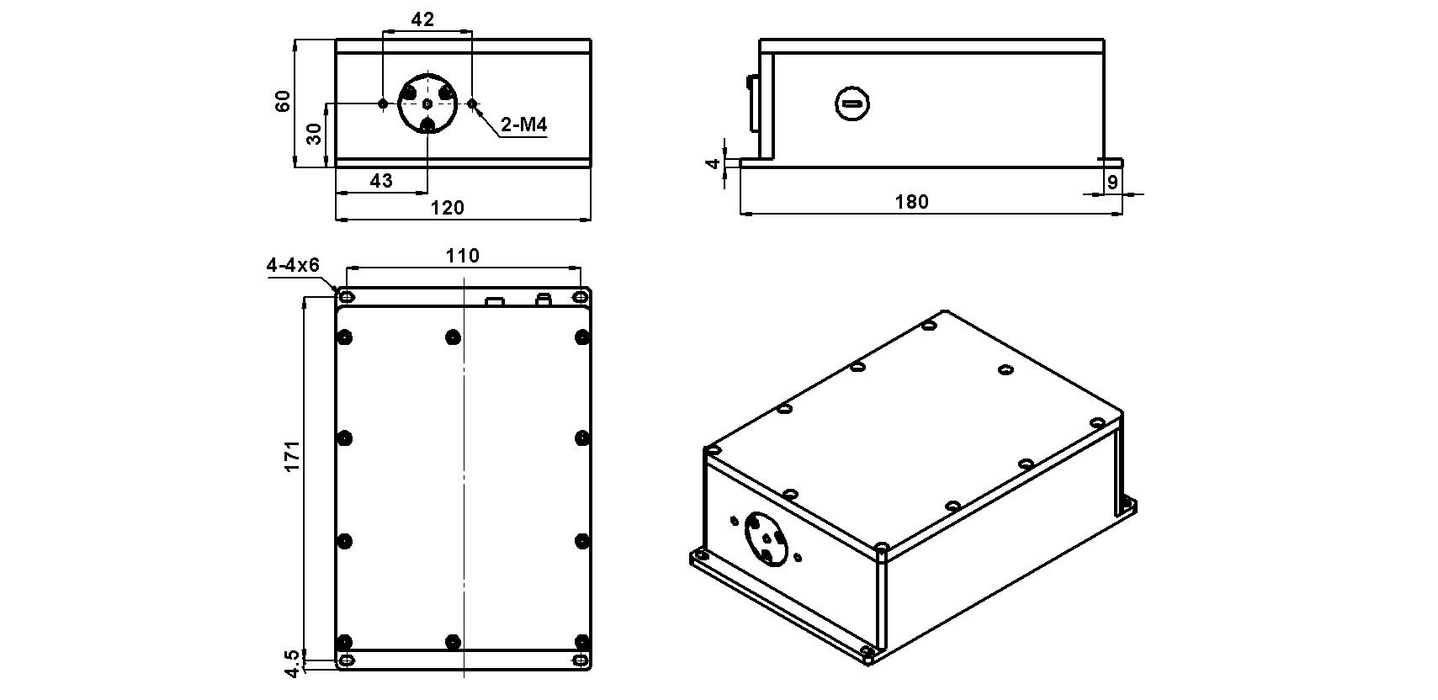

| Beam Height from Base Plate | 25 mm |
| Power Stability | <5%, <3% |
| Transverse Mode | TEM00 |
| Beam Diameter at the Aperture | ~1.0 mm |
| Polarization Ratio | >100:1, Horizontal (Vertical optional) |
| Warm-Up Time | < 10 min. |
| Operating Temperature | 10 ~ 35 ℃ |
| Power Supply (100 - 240 VAC) | PSU-AOM-DL |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-S-355
Please request a quotation for a real price and lead time.
