AO-S-671-H 671 nm LD Pumped All-Solid-State AOM Q-Switched Red Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 671nm has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, research
Model #: AO-S-671-H
| Model | AO-S-671-H |
| Wavelength (nm) | 671±1 |
| Operating Mode | Actively Q-switched |
| Average Power (mW)¹ | 1-350 |
| Single Pulse Energy (µJ)² | 1-30 (15µJ@10kHz; 20µJ@50kHz; 5µJ@100kHz) |
| Pulse Duration (ns)³ | ~5ns@10kHz; ~14ns@50kHz; ~62ns@100kHz |
| Peak Power (kW) | 0.1-3.9 |
| Repetition Rate⁴ | 10-100 kHz |
| Power Stability (rms, 4 hours ±3°C) | <3%, <2%, <1% |
| Beam Divergence, Full Angle (mrad) | <1.5 |
| Beam Diameter at the Aperture (1/e², mm) | <1.0 |
| Warm-Up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10-35 |

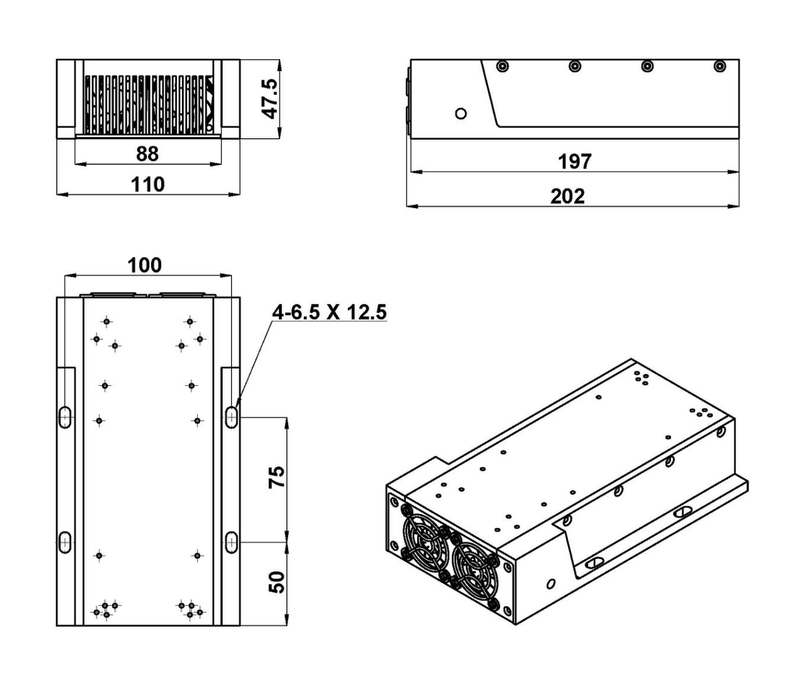

| Power Supply (100-240VAC) | PSU-H-FDA-AOM |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-S-671-H
Please request a quotation for a real price and lead time.
