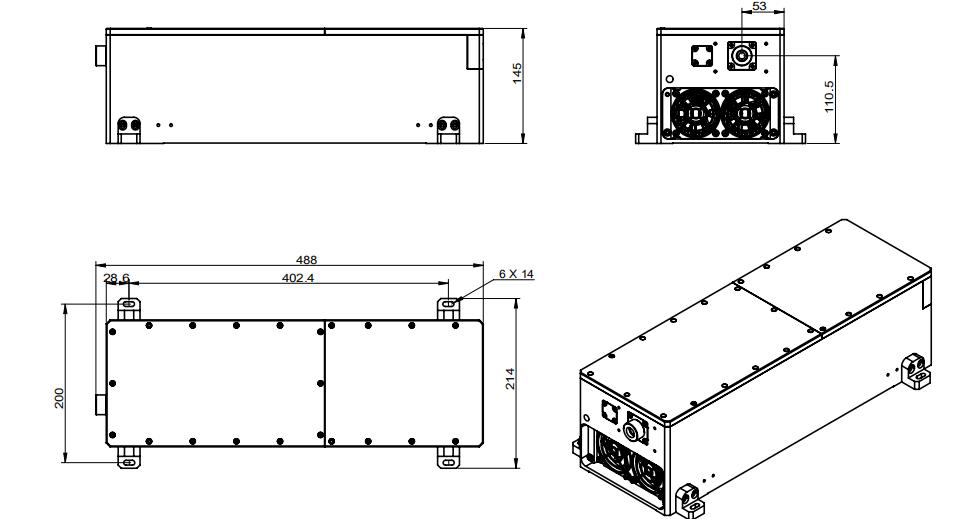

AO-T-1064 1064 nm LD Pumped All-Solid-State AOM Q-Switched Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser AO-T-1064 with high peak power, high repetition rate and short pulse duration.
Applications: marking on harder metals such as Titanium, Inconel, or Tool Steel
Model #: AO-T-1064
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Average Power (W) | 7 @10 kHz |
| Single Pulse Energy (µJ) | 700 @10 kHz |
| Rep. Rate (kHz) | 1-100 |
| Pulse Duration (ns) | ~20 |
| Peak Power (kW) | ~35 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1% |
| Transverse Mode | TEM00 |
| Beam Divergence, Full Angle (mrad) | <2 |
| Beam Diameter at the Aperture (1/e2, mm) | ~2.0 |
| M2 | <1.3 |
| Beam Height from Base Plate (mm) | 96 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air cooled |
| Operating Temperature (°C) | 10-35 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-T-1064
Please request a quotation for a real price and lead time.
