AO-Ti-720 720 nm LD Pumped All-Solid-State Q-Switched Red Laser
$1,000,000.00
Description: All solid state Q-switched red laser at 720nm has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, scientific research
Model #: AO-Ti-720
| Model | AO-Ti-720 |
| Wavelength (nm) | 720±2 |
| Operating Mode | Acousto-Optic Q-switched |
| Repetition Rate (kHz) | 30 / 50 |
| Average Power (mW)¹ | 1-1300 @30kHz / 1-1400 @50kHz |
| Pulse Duration (ns) | ~25 @30kHz&1300mW / ~40 @50kHz&1400mW |
| Single Pulse Energy (µJ) | 43 @30kHz / 28 @50kHz |
| Average Power Stability (over 4 hours) | <3%, 2%, (<1% optional) |
| Beam Diameter at the Aperture (1/e², mm) | 2 |
| Beam Divergence, Full Angle (mrad) | <2 |
| Polarization Ratio | >100:1 (horizontal) |

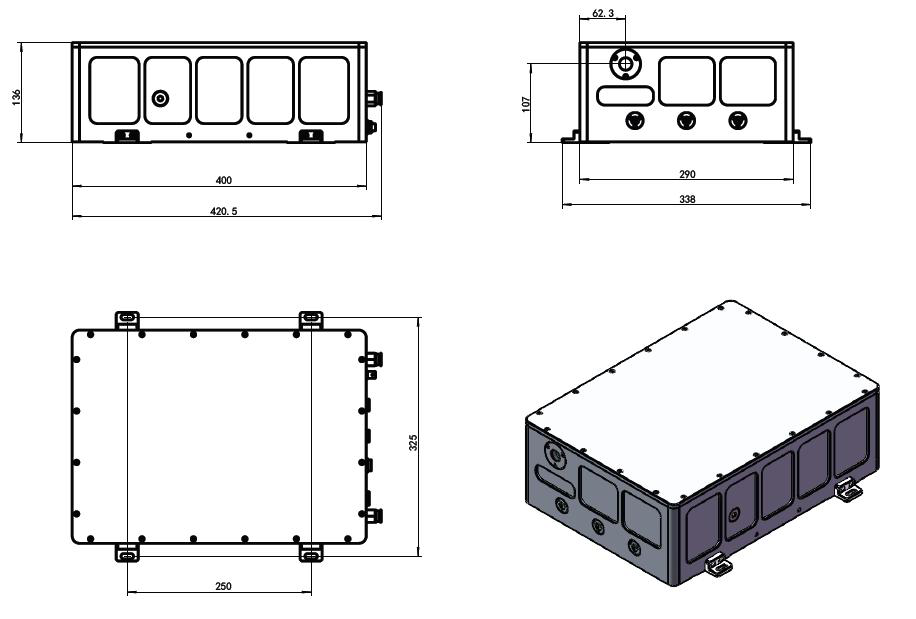

| Beam Height from Base Plate (mm) | 107 |
| Warm-Up Time (minutes) | <10 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 15-35 |
| Power Supply (220/110VAC) | PSU-AOM (3U) |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-Ti-720
Please request a quotation for a real price and lead time.
