AO-U-1064-HE 1064 nm High Energy LD Pumped All-Solid-State AOM Q-Switched Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 1064 nm with high peak power, high repetition rate and short pulse duration.
Applications: marking, carving, measurement, research and so on
Model #: AO-U-1064-HE
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Average Power (W) | 2 @1 kHz / 4 @2 kHz |
| Single Pulse Energy (mJ) | ~2 @1 kHz / ~2 @2 kHz |
| Rep. Rate | 1 Hz-10 kHz |
| Pulse Duration (ns) | ~12 @1 kHz |
| Peak Power (kW) | ~160 @1 kHz |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1% |
| Beam Divergence, Full Angle (mrad) | <4 |
| Beam Diameter at the Aperture (1/e2, mm) | ~1.0 |
| M2 | <1.2 |

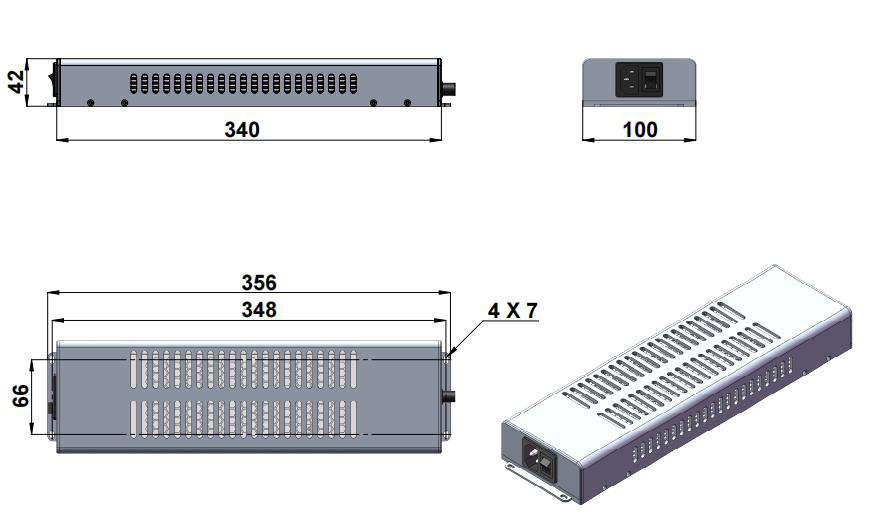

| Beam Height from Base Plate (mm) | 57 |
| Warm-up Time (minutes) | <10 |
| Polarization Ratio | >100:1 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |
| Operating Voltage (VDC) | 24 V |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-U-1064-HE
Please request a quotation for a real price and lead time.
