213 nm LD Pumped All-Solid-Sate Acousto-Optic Q-switched Pulsed Laser AO-U-213-DP
$1,000,000.00
Description: All solid state actively laser has the features of high peak power, high repetition rate and short pulse duration.
Applications: material processing, measure, scientific research
Model #: AO-U-213-DP
| Model | AO-U-213-DP |
| Wavelength | 213 nm |
| Operation Mode | Pulsed (Q-switched) |
| Average Power | 1-5 mW @15kHz |
| Single Pulse Energy | 0.3 µJ @15kHz |
| Pulse Width | ~12 ns @15kHz |
| Peak Power | ~0.1 kW @15kHz |
| Repetition Rate | 1-15 kHz |
| Power Stability | <5%, <3% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture | <2.0 mm |
| Beam Divergence, Full Angle | <2.0 mrad |
| Warm-Up Time | < 10 min. |

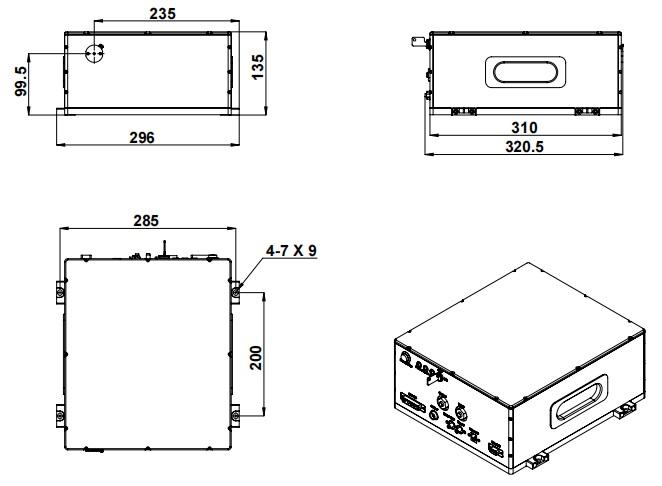

| Beam Height from Base Plate | 99.5 mm |
| Operating Temperature | 10 ~ 35 ℃ |
| Cooling Method | Water cooled |
| Power Supply | 12V/25A |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-U-213-DP
Please request a quotation for a real price and lead time.
