AO-UA-1064 1064 nm LD Pumped All-Solid-State AOM Q-Switched Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 1064 nm with high peak power, high repetition rate and short pulse duration.
Applications: marking, carving, measurement, research and so on
Model #: AO-UA-1064
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Average Power (W) | 1 @1 kHz / 2.5 @5 kHz / 3 @10 kHz |
| Single Pulse Energy (µJ) | >500 @1 Hz-5 kHz / >300 @10 kHz |
| Rep. Rate | 1 Hz-10 kHz |
| Pulse Duration (ns) | ~10 @1 kHz / ~15 @5 kHz / ~25 @10 kHz |
| Peak Power (kW) | ~30 @5 kHz |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1% |
| Beam Divergence, Full Angle (mrad) | ~3.5 |
| Beam Diameter at the Aperture (1/e2, mm) | ~0.8 |
| M2 | <1.2 |
| Polarization Ratio | >100:1 Vertical |
| Warm-up Time (minutes) | <10 |

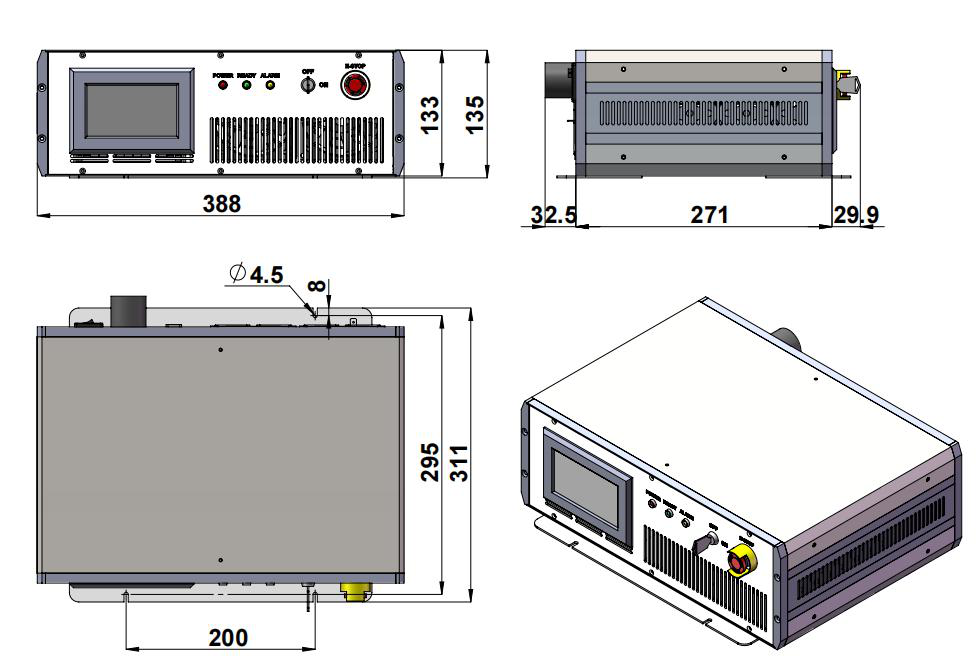

| Beam Height from Base Plate (mm) | 70 |
| Cooled Method | Air cooled |
| Operating Temperature (°C) | 10-35 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-UA-1064
Please request a quotation for a real price and lead time.
