AO-V-473 473 nm LD Pumped All-Solid-State AOM Q-Switched Pulsed Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 473 nm has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, research
Model #: AO-V-473
| Model | AO-V-473 |
| Wavelength (nm) | 473±1 |
| Operating Mode | Actively |
| Average Power (mW) | 500 @ 1 kHz / 500 @ 10 kHz |
| Single Pulse Energy (µJ) | 50 @ 1 kHz / 50 @ 10 kHz |
| Repetition Rate¹ | 1-10 kHz |
| Pulse Duration (ns)² | ~80 @ 1 kHz / ~200 @ 10 kHz |
| Peak Power (kW) | ~0.5 @ 1 kHz / ~0.25 @ 10 kHz |
| Power Stability (rms, 4 hours ±3°C) | <5%, <3%, <2% |
| Beam Divergence, Full Angle (mrad) | <2.5 |
| Beam Diameter at the Aperture (1/e², mm) | ~2.0 |

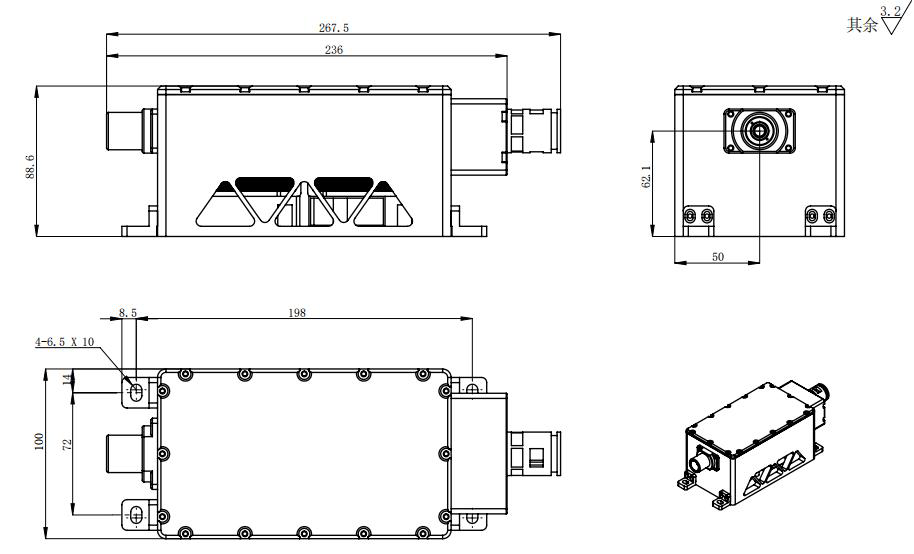

| Beam Height from Base Plate (mm) | 62.1 |
| Warm-Up Time (minutes) | <10 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |

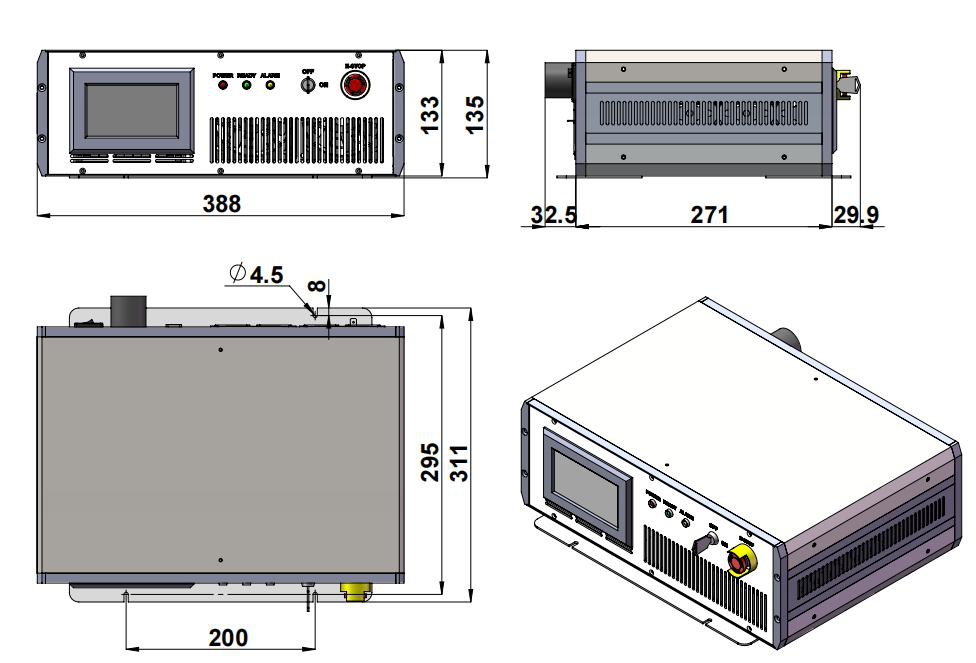

| Power Supply (100-240VAC) | PSU-AOM |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-V-473
Please request a quotation for a real price and lead time.
