AO-V-671 671 nm LD Pumped All-Solid-State AOM Q-Switched Red Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 671nm has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, research
Model #: AO-V-671
| Model | AO-V-671 |
| Wavelength (nm) | 671±1 |
| Operating Mode | Actively Q-switched |
| Average Power (W) | 3.5@10kHz / 4@20kHz |
| Single Pulse Energy (µJ) | >350@10kHz / >200@20kHz |
| Repetition Rate¹ | 1-100 kHz |
| Pulse Duration (ns)² | ~20@10kHz / ~25@20kHz |
| Peak Power (kW) | ~15@10kHz / ~10@20kHz |
| Average Power Stability (over 4 hours) | <3%, 2%, <1% |
| Beam Divergence, Full Angle (mrad) | <2.5 |
| Beam Diameter at the Aperture (1/e², mm) | ~1.0 |
| Beam Height from Base Plate (mm) | |
| Warm-Up Time (minutes) | <10 |
| Operating Temperature (℃) | 10-35 |

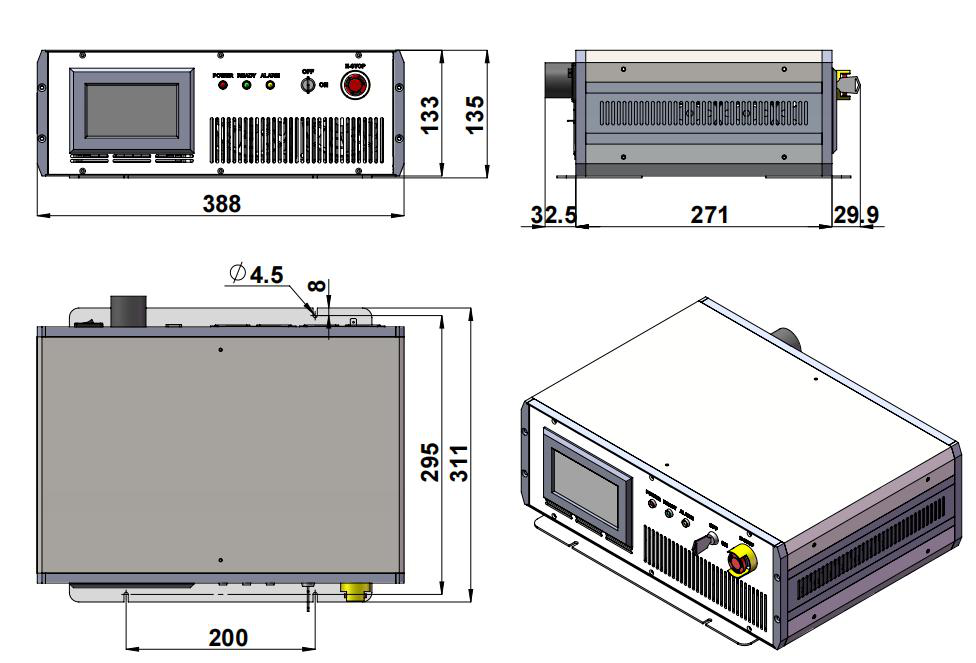

| Power Supply (100-240VAC) | PSU-AOM |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-V-671
Please request a quotation for a real price and lead time.
