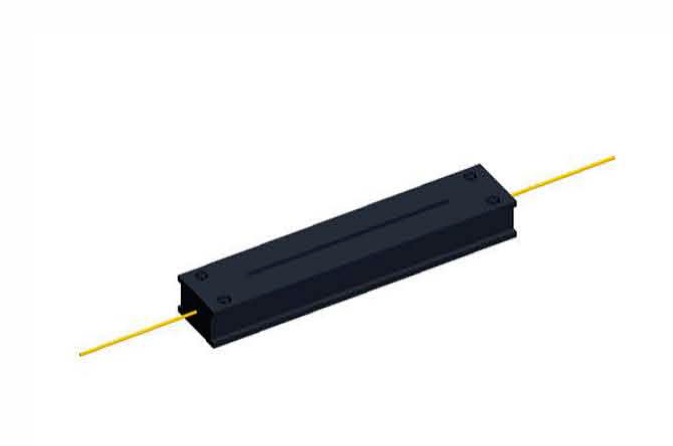

Cladding Power Stripper
Cladding Power Stripper
The Cladding Power Stripper removes unwanted cladding light from a double-clad fiber. It covers 980 nm, 1064 nm and 1550 nm with ±15 nm bandwidth and 800-1200 nm pump operation, giving 20 dB minimum cladding attenuation, 18 dB minimum polarization extinction ratio and 0.3 dB maximum insertion loss, with high power handling and customer configurations available for optical amplification and fiber optic lasers. HJ Optronics supplies the unit built to order; the datasheet lists the complete specifications and the ordering information.
Key Features
- Low Insertion Loss
- High Power Handling
- Customer Configurations Available
Applications
- Optical Amplification
- Fiber Optic Laser
Data Sheet: Cladding Power Stripper (PDF)
Configuration, splitting ratio and packaging are built to order - send us your specification for a quotation.
