Conical Lensed Optical Fibers
Conical Lensed Optical Fibers

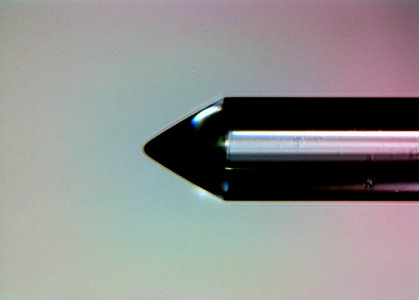

The Conical Lensed Optical Fiber is first ground into a conical shape on the fiber end face with precision grinding equipment, and an optical microsphere lens is then processed at its tip, expanding the numerical aperture of the fiber and increasing the absorption capacity. It gives low loss, excellent coupling efficiency and high precision for couplings of various types of laser device. The cone angle, radius of curvature, strip length, pigtail and connector are made to order; the datasheet lists the complete specifications and the ordering information.
Key Features
- Low loss
- Excellent coupling efficiency
- High precision
Applications
- Couplings of various types of laser device
Data Sheet: Conical Lensed Optical Fibers (PDF)
Configuration, splitting ratio and packaging are built to order - send us your specification for a quotation.
