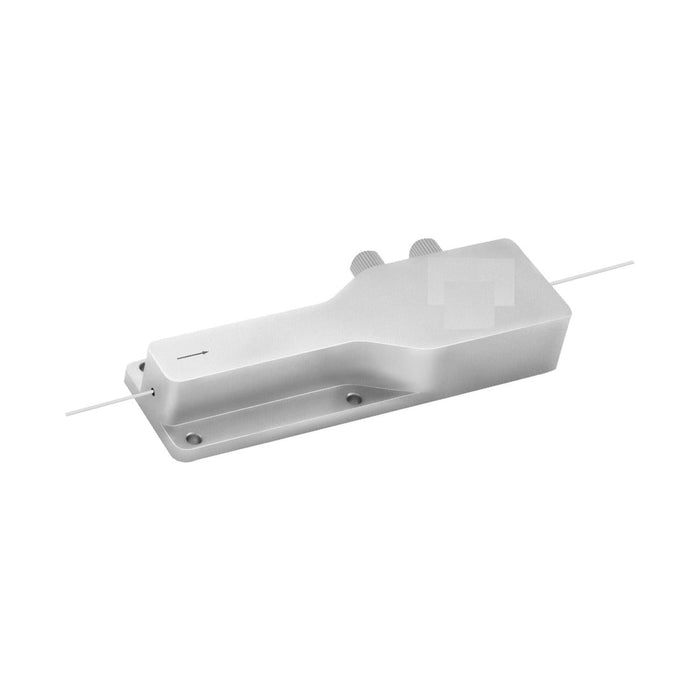

CPS Cladding Power Stripper (800 – 2000 nm)
The Cladding Power Stripper (CPS) is designed for efficiently stripping off residual cladding power, ASE and escaped core modes of double cladding fiber while preserving minimal degradation to signal power and beam quality.
Model #: CPS (ordering code CPS-AAA-BBBB-CC-DDD-E-F).
Please refer to Data Sheet for detailed specifications.
- High Power Handling up to 800 W
- Low Insertion Loss (0.3 dB max.)
- Min. Stripping Efficiency 98%
- Operating Wavelength Range 800 – 2000 nm

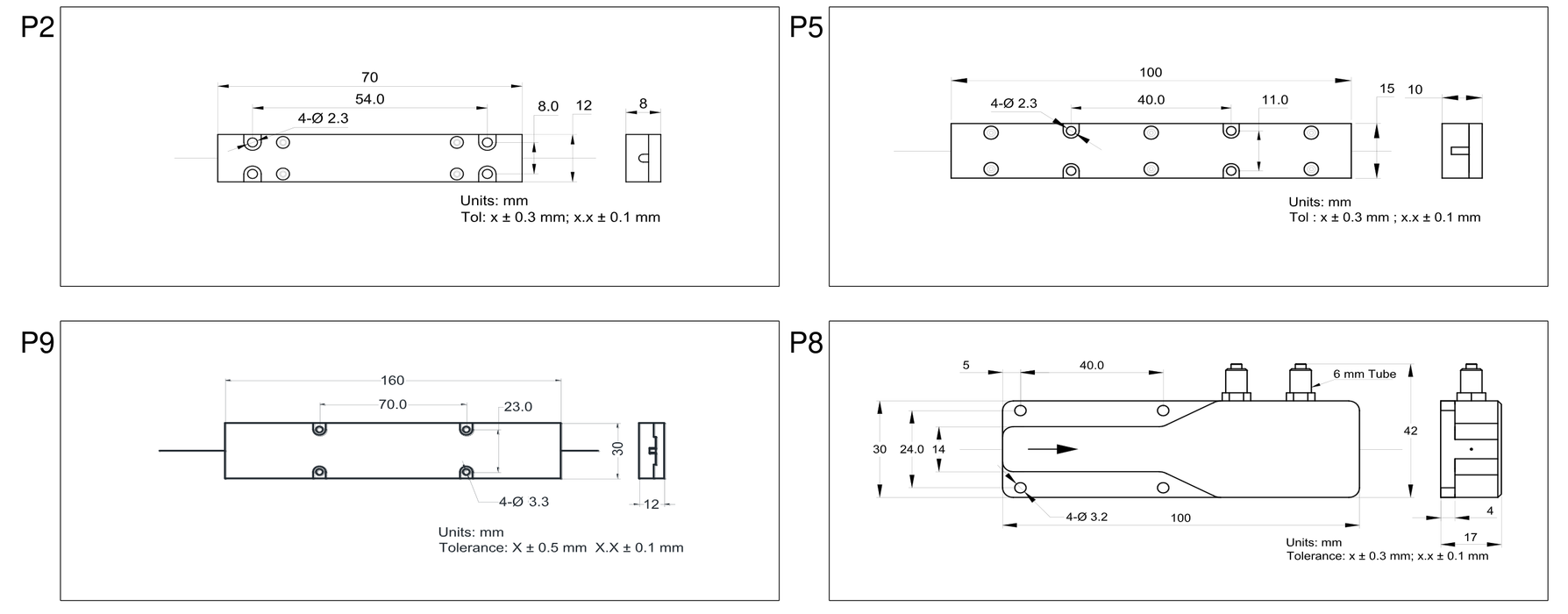

- Four packages: P2 (70 × 12 × 8), P5 (100 × 15 × 10), P9 (160 × 30 × 12), P8 (100 × 30 × 17, water cooling)
