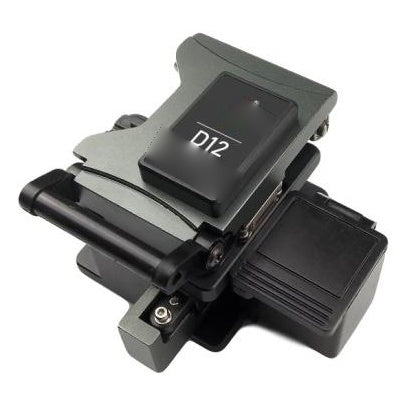

D12 High Precision Fiber Cleaver
D12 High Precision Fiber Cleaver
The D12 is a high-precision fiber cleaver designed for fiber optic splicing work. It delivers a clean, consistent cut without requiring special skills, and its compact, lightweight body makes it convenient for field and laboratory use. The interchangeable holder accepts both single tube fiber and ribbon fiber, and the built-in fiber collector keeps cut fiber ends contained. It is intended for use with fiber optic fusion splicers and FTTH cable preparation.
Key Features
- High-precision cleaving in a compact, lightweight body (59 × 55 × 49 mm, 260 g).
- Exchangeable holder for single tube fiber and ribbon fiber.
- Semi-automatic operation — precise cutting without special skills.
- Cleaved angle ≤ 0.5° with a cleaved length of 5 – 20 mm.
- Blade life of 48,000 cleaves; fiber collector available.
Specifications
| Parameter | Specifications |
|---|---|
| Model | D12 |
| Fiber Diameter | 125 µm |
| Outer Coating Diameter | 0.25 – 0.9 mm |
| Fiber Type | Single tube fiber and ribbon fiber (exchangeable) |
| Cleaved Length | 5 – 20 mm |
| Cleaved Angle | ≤ 0.5° |
| Blade Life | 48,000 cleaves |
| Mode | Semi-automatic |
| Fiber Collector | Available |
| Dimension | 59 mm (W) × 55 mm (D) × 49 mm (H) |
| Weight | 260 g |
Data Sheet: D12 High Precision Fiber Cleaver (PDF)
