Digital Galvo Driver
Digital Galvo Driver

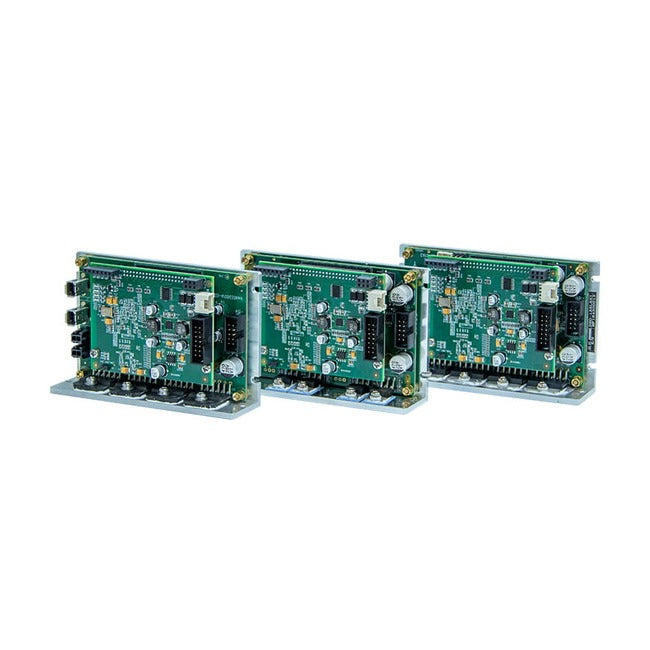

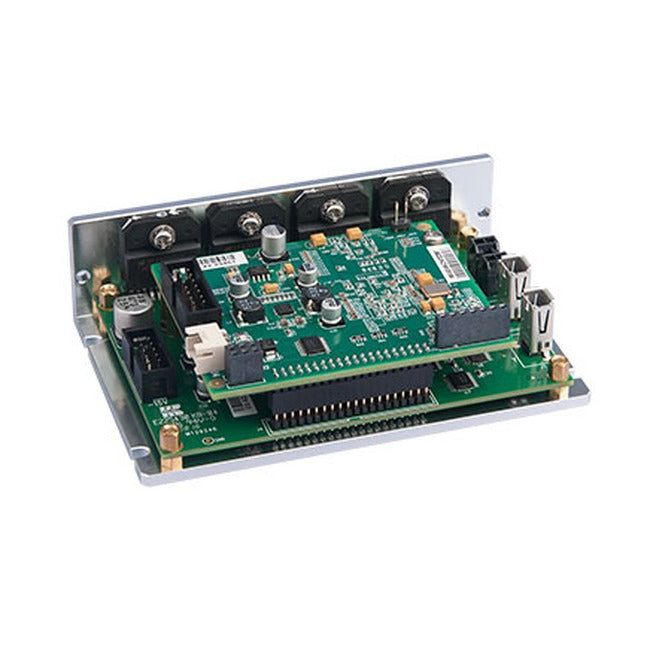

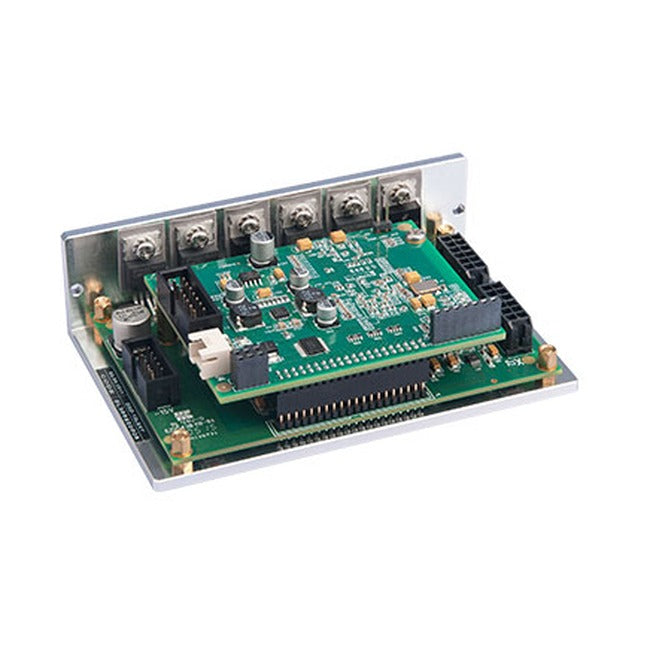

The Digital Galvo Driver is a driver board for the full range of Scanner Optics photoelectric and grating galvanometer motors: one board drives two galvanometer motors at the same time. It supports a variety of digital communication protocols with state output and position feedback, and different debugging files can be configured per customer to meet the requirements of different applications. The grating-series board is matched to high-end grating galvanometer motors and reaches 23-bit position resolution, ensuring extremely low drift.
Key Features:
- Load size 3-50mm aperture mirrors.
- Support XY2-100 protocol, SPI protocol, ST2-100 protocol, differential digital signal input, and differential digital signal output.
- Compact size, a variety of performance of driver are optional for different galvo motors and loads.
- Based on high-speed FPGA control mode, support the information output for position, status and alarm.
- A variety of debugging modes for different applications, such as Vector Tune, High Speed Tune, etc.
- Suitable for Scanner Optics STGalvo series, UltraGalvo series and ExtraGalvo series galvanometers.
Specifications of Digital Galvo Driver
| Parameter | Specifications |
|---|---|
| Product | Digital Galvo Driver |
| Type | Digital galvanometer driver board (high-speed FPGA control, dual-axis) |
| Mirror Load | 3 mm to 50 mm aperture mirrors |
| Command Protocols | XY2-100, SPI, ST2-100 |
| Position Resolution | Up to 23 bit with grating galvanometer motors |
| Typical Applications | Laser welding, marking, drilling, cutting, micromachining, medical aesthetic, ophthalmic imaging and 3D printing |
| Model | ExtraServo (A) Light Load | ExtraServo (A) Heavy Load | ExtraServo (D) |
|---|---|---|---|
| Number of Axes | Dual | Dual | Dual |
| Command Input | XY2-100 / SPI / ST2-100 | XY2-100 / SPI / ST2-100 | 16bit: XY2-100 / 20bit: ST2-100 |
| Analog Output Impedance | The un-terminated output of DAC8551, <1Ω | The un-terminated output of DAC8551, <1Ω | The un-terminated output of DAC8551, <1Ω |
| Position Output Scale Factor | 0.4V/degree non-differential | 0.4V/degree non-differential | 0.4V/degree non-differential |
| Power Supply Requirements | ±15V (±10%) | ±15V (±10%) | ±15V (±10%) |
| Maximum Drive Current Limit | 3A | 10A | 11.5A |
| Quiescent Power | 7.45W | 7.95W | 13.95W |
| Operating Temperature Range | 10 - 50°C | 10 - 50°C | 10 - 50°C |
| Dimensions | 105 × 70 mm | 105 × 70 mm | 105 × 70 mm |
| Temperature Stability of Electronics | 20 ppm/°C | 20 ppm/°C | 20 ppm/°C |
| Recommended Mirror Aperture | <7 mm / 10 mm / 14 mm | 20 mm / 30 mm / 50 mm | 10 mm / 14 mm / 20 mm / 30 mm |
| Model | ExtraServo IV (A) | ExtraServo IV (D) |
|---|---|---|
| Number of Axes | Dual | Dual |
| Command Input | 16bit: XY2-100 / 20bit: ST2-100 | 16bit: XY2-100 / 20bit: ST2-100 |
| Digital Output Mode | PWM | PWM |
| Position Output Scale Factor | 0.4V/degree non-differential | 0.4V/degree non-differential |
| Power Supply Requirements | 48V/5A (10%), maximum ripple 200 mVpp @20 MHz BW | 48V/5A (10%), maximum ripple 200 mVpp @20 MHz BW |
| Maximum Drive Current Limit | 15A | 15A |
| Quiescent Power | 9.6W | 9.6W |
| Operating Temperature Range | 15 - 50°C | 15 - 50°C |
| Dimensions | 115 × 70 mm | 115 × 70 mm |
| Temperature Stability of Electronics | 20 ppm/°C | 20 ppm/°C |
| Recommended Mirror Aperture | 10 mm / 14 mm / 20 mm / 30 mm | 10 mm / 14 mm / 20 mm |
Data Sheet: Digital Galvo Driver (PDF)
ExtraServo and ExtraServo IV series boards, for 3 mm to 50 mm aperture mirrors. Tell us your galvo motor and application and we will quote the right board.
