DPS-1064-BS 1064 nm High Energy Diode Pumped All-Solid-State Q-Switched Laser
$1,000,000.00
Description: High energy diode pumped all solid state Q-switched laser at 1064 nm with high single pulse energy, short pulse duration and high peak power.
Applications: LIBS, scientific research, laser induced breakdown spectroscopy, etc.
Model #: DPS-1064-BS
| Wavelength (nm) | 1064±1 |
| Operating Mode | Q-switched: EOM (Electro-optic modulation) |
| Single Pulse Energy (mJ) | 40 / 80 |
| Pulse Duration (ns) | ~10 |
| Rep. Rate (Hz) | 1-10, EXT (adjustable) |
| Energy Stability (std dev/mean) | <2%, <3%, <5% |
| Beam Divergence, Full Angle (mrad) | ≤3 |
| Beam Diameter (mm) | ~5 |
| Warm-up Time (minutes) | <15 |

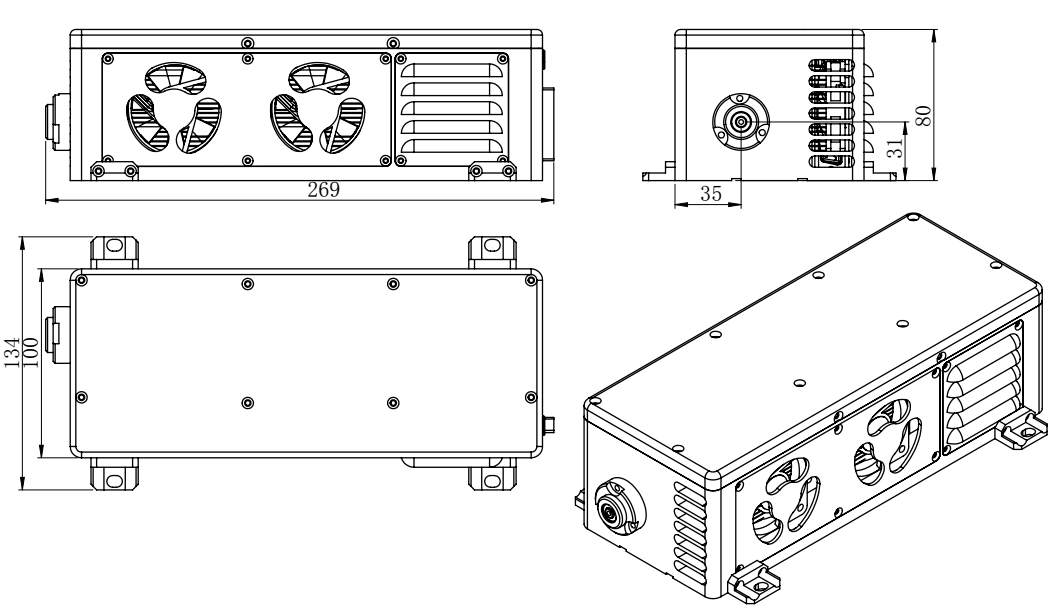

| Beam Height from Base Plate (mm) | 31 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 15-30 |
| Power Supply | PSU-DPS-BS |
| Expected Lifetime (pulses) | 10⁹ |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # DPS-1064-BS
Please request a quotation for a real price and lead time.
