DPS-1064-E 1064 nm High Energy Diode Pumped All-Solid-State Q-Switched Laser
$1,000,000.00
Description: High energy diode pumped all solid state Q-switched laser at 1064 nm with high single pulse energy, short pulse duration and high peak power.
Applications: LIBS, scientific research, laser induced breakdown spectroscopy, etc.
Model #: DPS-1064-E
| Wavelength (nm) | 1064±1 |
| Operating Mode | Actively |
| Single Pulse Energy (mJ) | 1-8 |
| Pulse Duration (ns) | <4 |
| Jitter (ns, sdev) | <1 (Int.) |
| Rep. Rate | 1-50 Hz (optional) |
| Energy Stability (std dev/mean) | <5%, <3%, <2% |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter (mm) | ~1 |

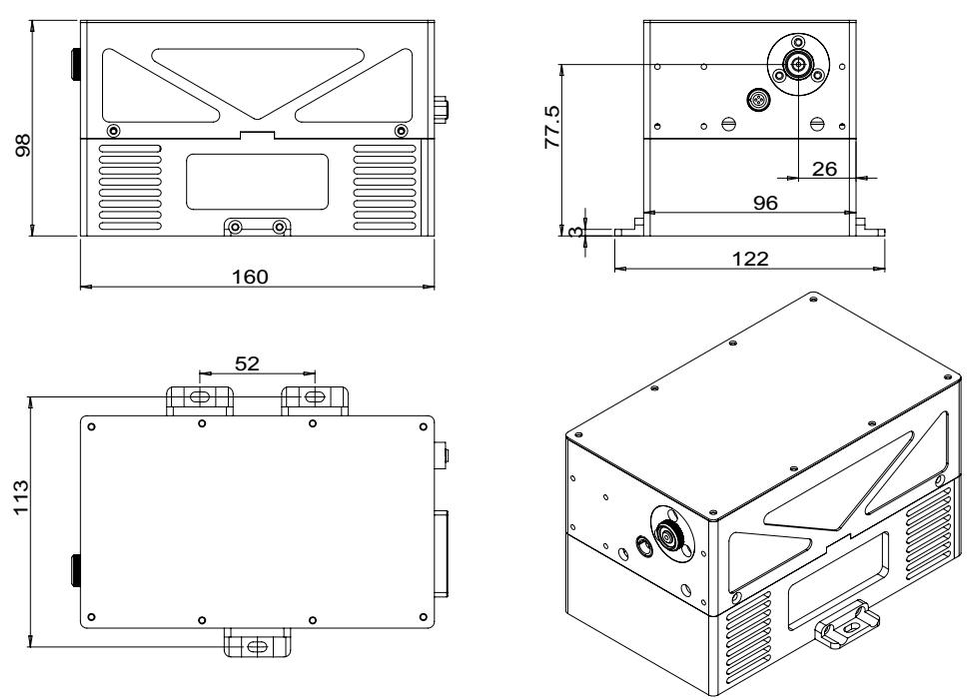

| Beam Height from Base Plate (mm) | 34 / 77.5 |
| Warm-up Time (minutes) | <15 |
| Cooled Method | Conduction (DPS-1064-E-I) / Air cooled (DPS-1064-E-II) |
| Operating Temperature (℃) | 15-30 |
| Power Supply (VDC) | PSU-DPS-E (24 V/18.8 A) |
| Expected Lifetime (pulses) | 10⁹ |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # DPS-1064-E
Please request a quotation for a real price and lead time.
