DPS-1535-P 1535 nm High Energy Diode Pumped Q-Switched Laser
$1,000,000.00
Description: High energy diode pumped all solid state Q-switched laser at 1535 nm featuring compact structure, short pulse duration and high peak power.
Applications: lidar, laser ranging, optical communication, target indication and so on
Model #: DPS-1535-P
| Version | DPS-1535-P-I / DPS-1535-P-II / DPS-1535-P-III |
| Wavelength (nm) | 1535±5 |
| Operating Mode | Passively |
| Single Pulse Energy (µJ) | 400 / 500 / 40 |
| Pulse Duration (ns) | 3-6 |
| Rep. Rate | 1-10 Hz (optional) / 1000 Hz |
| Energy Stability (rms) | ≤5% |
| M2 | ≤1.3 (I/II) / ≤1.5 (III) |
| Beam Diameter (mm) | ~1 |
| Beam Divergence, Full Angle (mrad) | ≤15 |
| Warm-up Time (seconds) | <10 |

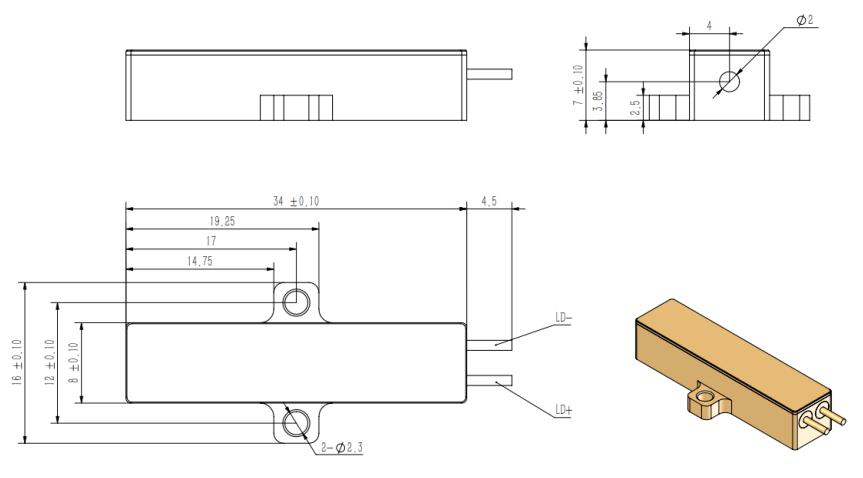

| Beam Height from Base Plate (mm) | 3.85 |
| Cooled Method | Conduction |
| Operating Temperature (°C) | -20 to 60 |
| Power Supply (5 VDC) | PSU-DPS-P |
| Expected Lifetime (pulses) | >10⁷ |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # DPS-1535-P
Please request a quotation for a real price and lead time.
