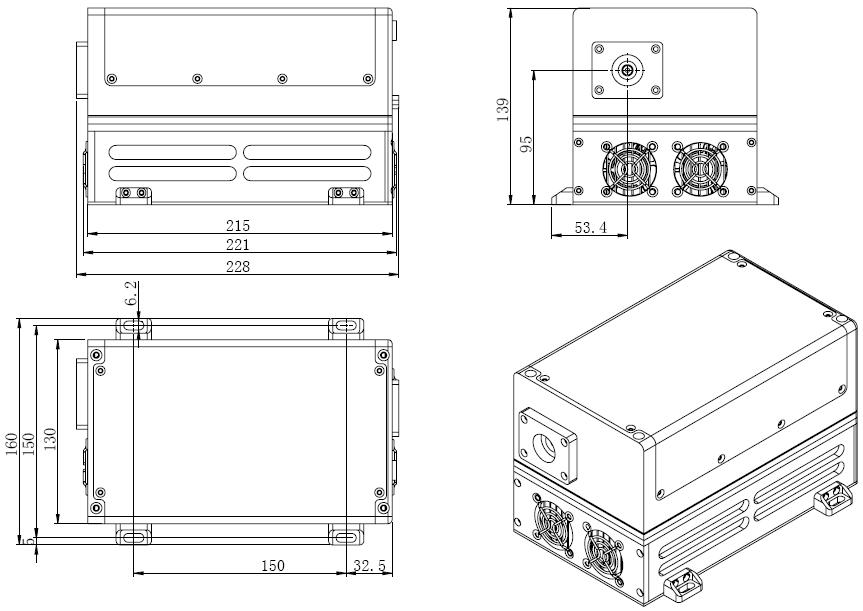

EO-1053-N 1053 nm High Energy Diode Pumped All-Solid-State Q-Switched Laser
$1,000,000.00
Description: High energy diode pumped all solid state Q-switched laser at 1053 nm with high single pulse energy, short pulse duration and high peak power.
Applications: high energy applications, scientific research
Model #: EO-1053-N
| Wavelength (nm) | 1053±1 |
| Operating Mode | Actively |
| Single Pulse Energy (µJ) | 1-1000 @100 Hz / 1-200 @1 kHz |
| Average Power (mW) | 1-100 @100 Hz / 100-200 @1 kHz |
| Power Stability (rms, 4 hours ± 3°C) | <5% |
| Pulse Duration (ns) | <10 @100 Hz |
| Rep. Rate | 10 Hz, 100 Hz, 200 Hz, 500 Hz, 1000 Hz optional |
| Beam Diameter (mm) | ~1 |
| Beam Divergence, Full Angle (mrad) | <3 |
| Cooling Method | Air cooled |
| Warm-up Time (minutes) | <15 |
| Power Supply (24 VDC) | PSU-EO-N (24 V/13 A) |
| Operating Temperature (℃) | 15-30 |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-1053-N
Please request a quotation for a real price and lead time.
