EO-1064-PS 1064 nm All-Solid-State Picosecond Laser
$1,000,000.00
Description: All solid state picosecond laser at 1064 nm with high average power, high repetition rate and short pulse duration.
Applications: micro-machining, scientific research, industrial processing
Model #: EO-1064-PS
| Wavelength (nm) | 1064±1 |
| Operating Mode | Pulsed |
| Average Power (W) | 5-20 @1 MHz |
| Output Energy (µJ) | 1-150 @200 kHz |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Pulse Duration (ps) | <15 |
| M2 | ≤1.3 |
| Pointing Stability Over Temperature (μrad/°C) | <50 |
| Ellipticity | >85% |
| Polarization | 100:1 |
| Beam Diameter (mm) | 1.5±0.5 |
| Beam Divergence, Full Angle (mrad) | ≤2 |
| Repetition Frequency | 1-1000 kHz |
| Control Mode | Gate/burst/INT control |

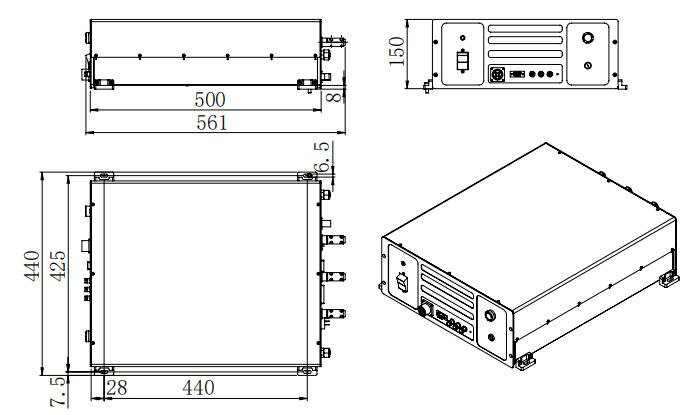

| Beam Height from Base Plate (mm) | 87 (EO-1064-PS-I); 90 (EO-1064-PS-II) |
| Cooled Method | Water cooled |
| Warm-up Time (minutes) | <15 |
| Operating Temperature (℃) | 15-30 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-1064-PS
Please request a quotation for a real price and lead time.
