213 nm LD Pumped All-Solid-Sate Sub-Nanosecond Pulsed Laser EO-213-Subnano
$1,000,000.00
Description: High energy diode pumped all solid state Q-switched laser at 213nm has the features of high single pulse energy, short pulse duration, and high peak power.
Applications: biomedicine, environmental monitoring, scientific research
Model #: EO-213-Subnano-XX-YY
| Model | EO-213-Subnano |
| Wavelength | 213 nm |
| Average Power | 1-30 mW |
| Repetition Rate | 1-5 kHz |
| Power Stability | <5% |
| Warm-Up Time | < 15 min. |
| Operation Mode | Pulsed |
| Pulse Width | <2 ns |
| Single Pulse Energy | 1-30 µJ |
| Beam Diameter at the Aperture | ~1.5 mm |
| Beam Divergence, Full Angle | <5 mrad |

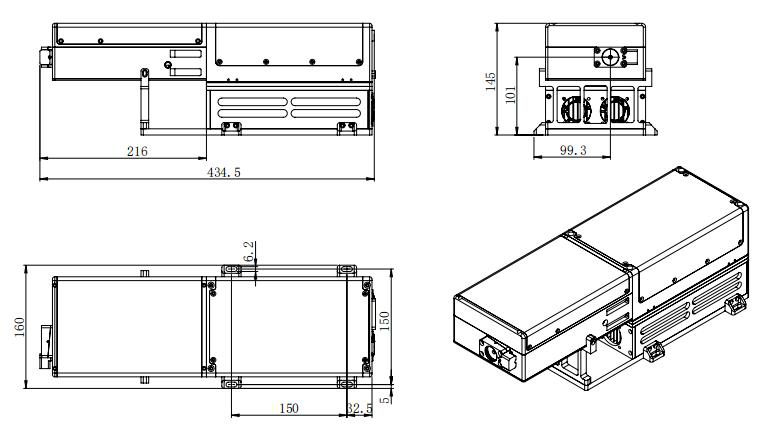

| Beam Height from Base Plate | 101 mm |
| Cooling Method | Air cooled |
| Operating Temperature | 15-30 ℃ |

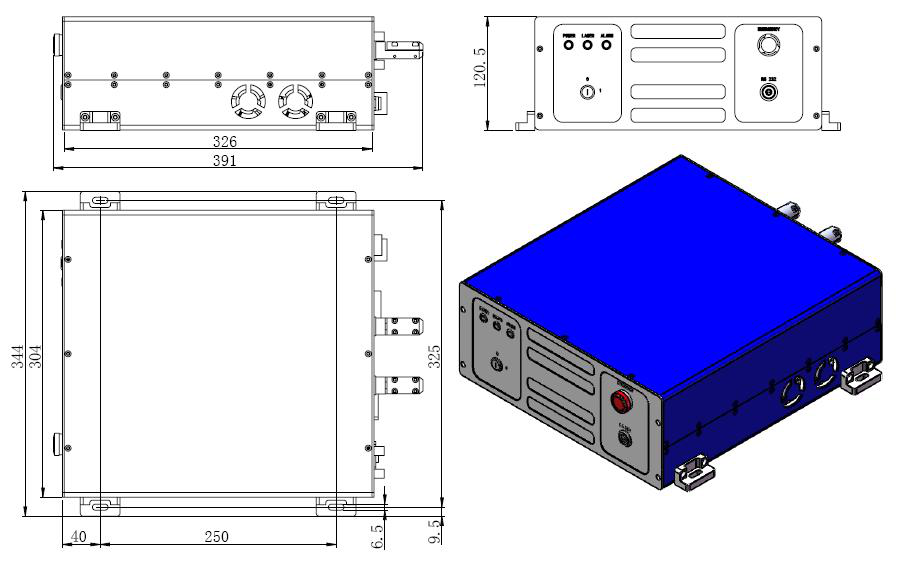

| Power Supply (90 - 264 VAC) | PSU-EO-Subnano |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-213-Subnano
Please request a quotation for a real price and lead time.
