266 nm LD Pumped All-Solid-Sate Electric-optic Q-switched Pulsed Laser EO-266-G
$1,000,000.00
Description: High energy diode pumped all solid state Q-switched laser at 266 nm has the features of high single pulse energy, short pulse duration and high peak power.
Applications: scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving
Model #: EO-266-G
| Wavelength | 266±1 |
| Operation Mode | Electric-optic Q-switched |
| Single Pulse Energy | 10-100 @1kHz / 10-100 @5kHz / 4 @25kHz |
| Pulse Width | <9 @1kHz / <9 @5kHz / <13 @25kHz |
| Repetition Rate | 1Hz-1kHz / 1-7kHz / 1-25kHz |
| Power Stability | <5%, <3% |
| Pointing Stability Over Temperature | <20 |
| Beam Divergence, Full Angle | <3 |
| Beam Diameter | ~1 |

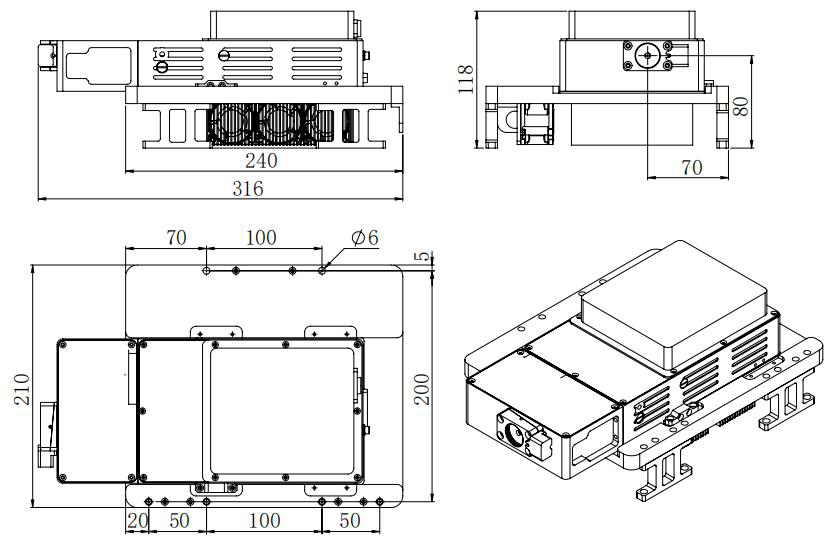

| Beam Height from Base Plate | 80, 56 |
| Warm-Up Time | <15 |
| Cooling Method | Air cooled or water cooled |
| Operating Temperature | 15-30 |
| Power Supply (24 VDC) | PSU-EO-G (24V/13A) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-266-G
Please request a quotation for a real price and lead time.
