EO-LS-515 515 nm LD Pumped All-Solid-State EOM Q-Switched Laser
$1,000,000.00
Description: All solid state EOM Q-switched laser at 515 nm has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, research
Model #: EO-LS-515
| Model | EO-LS-515 |
| Wavelength (nm) | 515±1 |
| Operating Mode | Actively |
| Average Power (mW)¹ | 1-400 |
| Single Pulse Energy (µJ)² | 1-400 |
| Repetition Rate (kHz) | 1 |
| Pulse Duration (ns) | <20 |
| Peak Power (kW) | 0.05-20 |
| Ave Power Stability (rms, 4 hours ±3°C) | <5%, <3% |
| Warm-Up Time (minutes) | <10 |
| Beam Divergence, Full Angle (mrad) | <1 |
| Beam Diameter at the Aperture (1/e², mm) | ~2 |
| M² Factor | <1.3 |

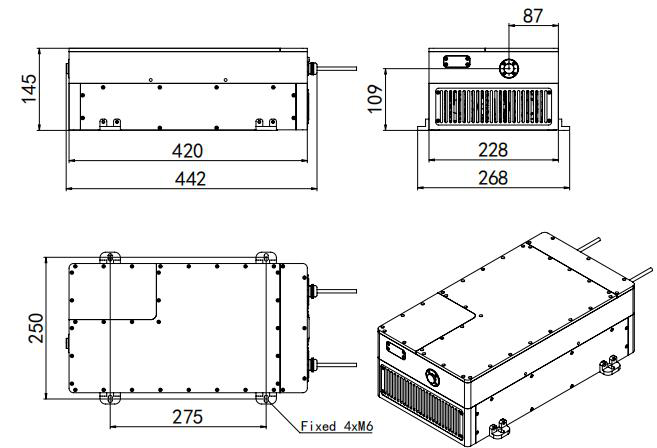

| Beam Height from Base Plate (mm) | 109 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |

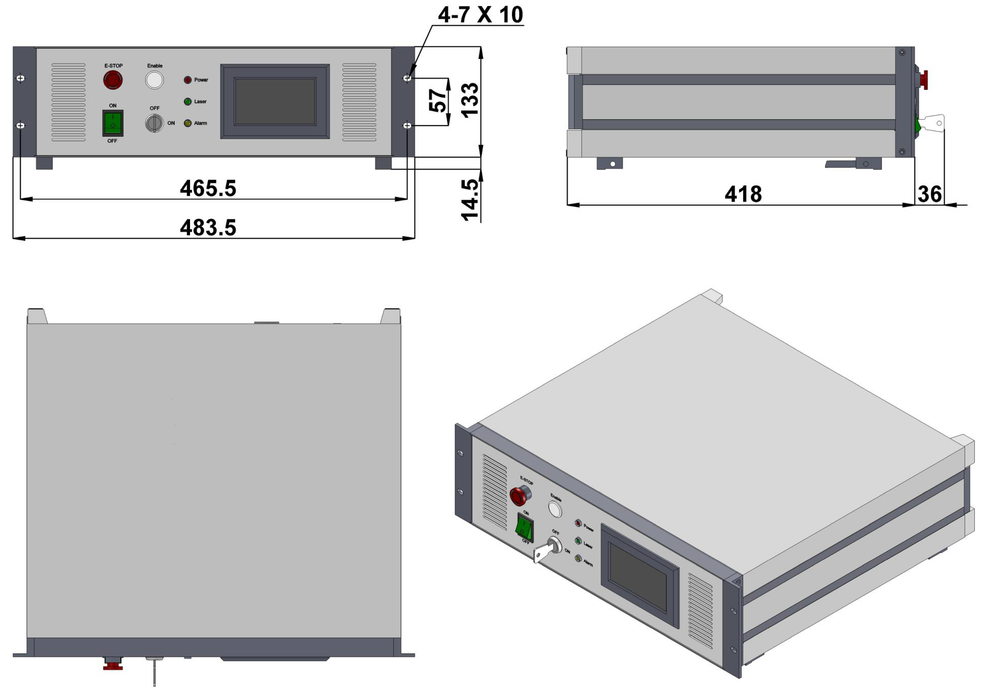

| Power Supply (100-240VAC) | PSU-AOM (3U) |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-LS-515
Please request a quotation for a real price and lead time.
