355 nm LD Pumped All-Solid-Sate Electric-optic Q-switched Pulsed Laser EO-S-355-RS
$1,000,000.00
Description: All solid state laser has the features of high single pulse energy, short pulse duration and high peak power.
Applications: laser distance measuring, laser Radar, laser Raman, ICP-MS, LIBS, scientific research
Model #: EO-S-355-RS
| Model | EO-S-355-RS |
| Wavelength | 355 nm |
| Operation Mode | Pulsed (Q-switched) |
| Average Power | 1-70 / 1-150 mW |
| Single Pulse Energy | 1-70 / 1-15 µJ |
| Pulse Width | ~1.3 / ~1.3@<10kHz; ~1.7@20kHz ns |
| Peak Power | 0.7-53.8 / 0.5-11.5 kW |
| Repetition Rate | 10Hz-1kHz / 1-20kHz |
| M2 | <2.0 |
| Jitter | <0.2 ns (Ext, optional) |
| Power Stability | <5%, <3% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture | ~1.5 mm |
| Beam Divergence, Full Angle | <1.5 mrad |
| Warm-Up Time | < 10 min. |

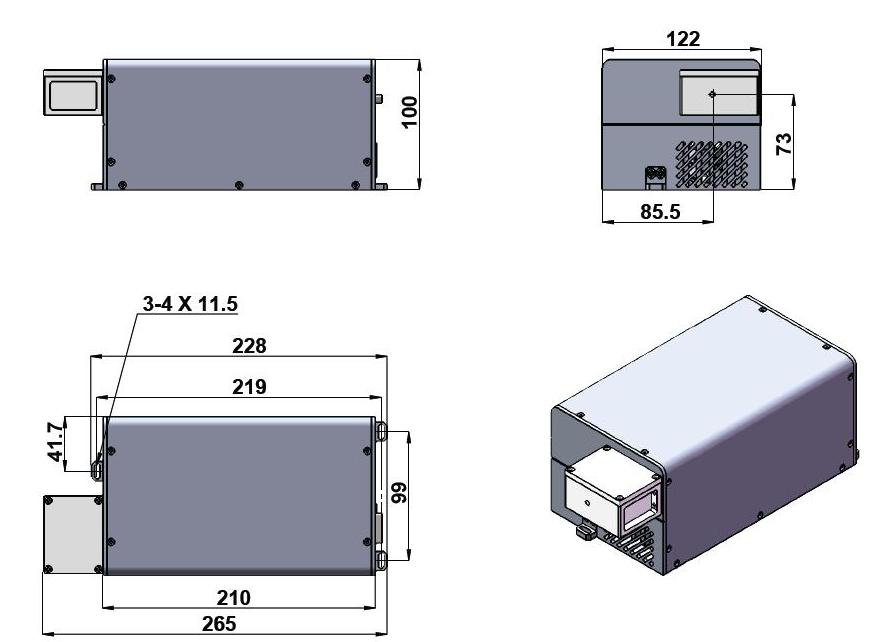

| Beam Height from Base Plate | 73 mm |
| Operating Temperature | 10 ~ 35 ℃ |
| Power Supply (100 - 240 VAC) | PSU-EOM-DL/PSU-EOM-L (optional) |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-S-355-RS
Please request a quotation for a real price and lead time.
