228 nm LD Pumped All-Solid-Sate Electric-Optic Q-switched Pulsed Laser EO-XS-228
$1,000,000.00
Description: All solid state EOM Q-switched laser at 228 nm has the features of high peak power, high repetition rate, and short pulse duration.
Applications: marking, carving, measure, research
Model #: EO-XS-228-XX-YY
| Model | EO-XS-228 |
| Wavelength | 228 nm |
| Average Power | 1-10 mW |
| Repetition Rate | 10 kHz |
| Power Stability | <5%, <3% |
| Warm-Up Time | < 10 min. |
| Operation Mode | Pulsed |
| Pulse Width | ~4 ns |
| Single Pulse Energy | 0.1-1 µJ |
| Peak Power | 0.025-0.25 kW |
| Beam Diameter at the Aperture | <8 mm |
| Beam Divergence, Full Angle | <5 mrad |
| Beam Height from Base Plate | 82 mm |
| Cooling Method | Air cooled |
| Operating Temperature | 10~35 ℃ |

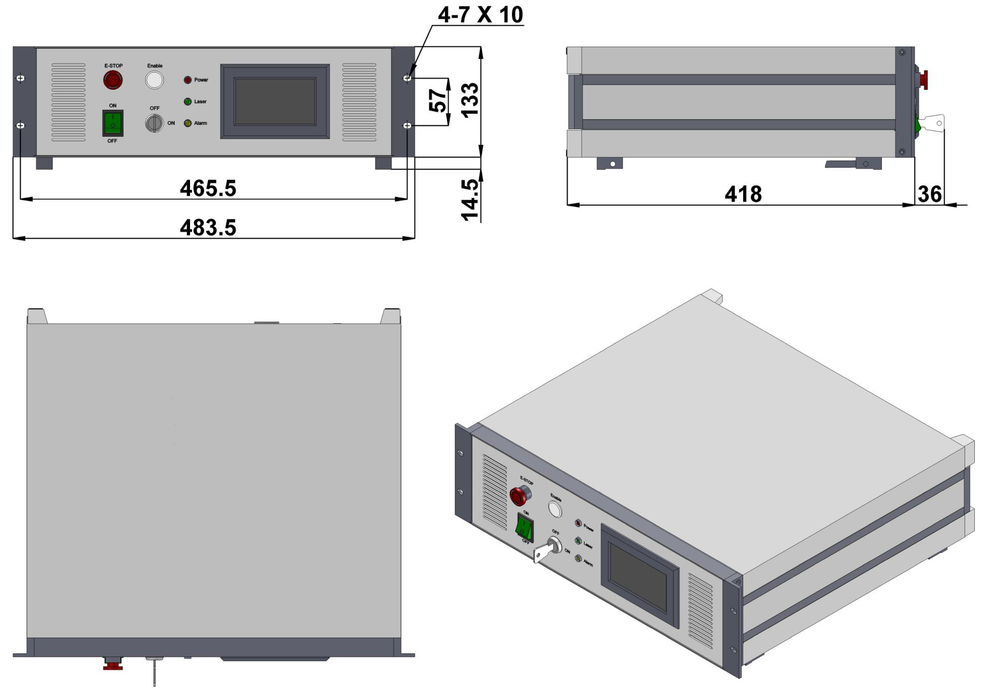

| Power Supply (90 - 264 VAC) | PSU-AOM (3U) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # EO-XS-228
Please request a quotation for a real price and lead time.
