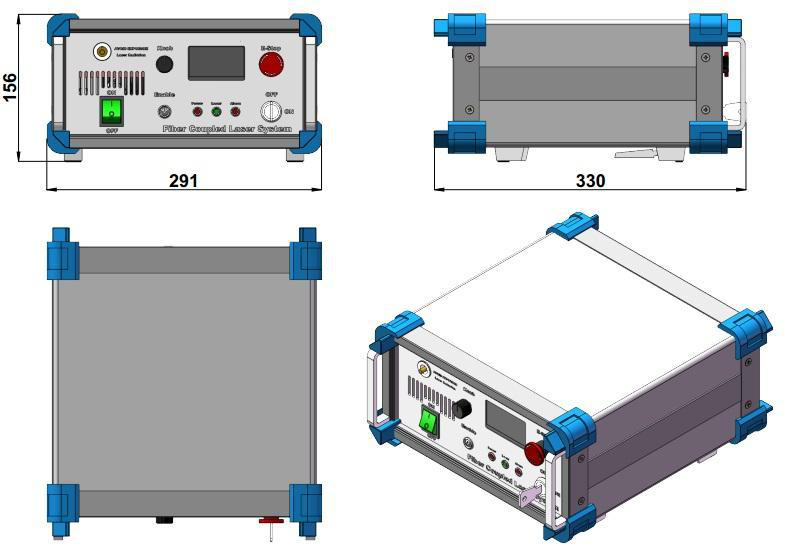

FC-1177 1177 nm Fiber Coupled Laser System
$1,000,000.00
Description: Fiber coupled laser system at 1177 nm integrating laser, fiber coupled optics, laser power supply and temperature control into one housing.
Applications: medical, biomedical and industrial applications
Model #: FC-1177
| Wavelength (nm) | 1177±1 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | >1, 10, 20, …, 360 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3%, <5% |
| Fiber Core Diameter (μm) | 400/200 (MM fiber, other fiber core diameter available on request) |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 1 (other lengths available on request) |
| Warm-up Time (minutes) | <5 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-1177
Please request a quotation for a real price and lead time.
