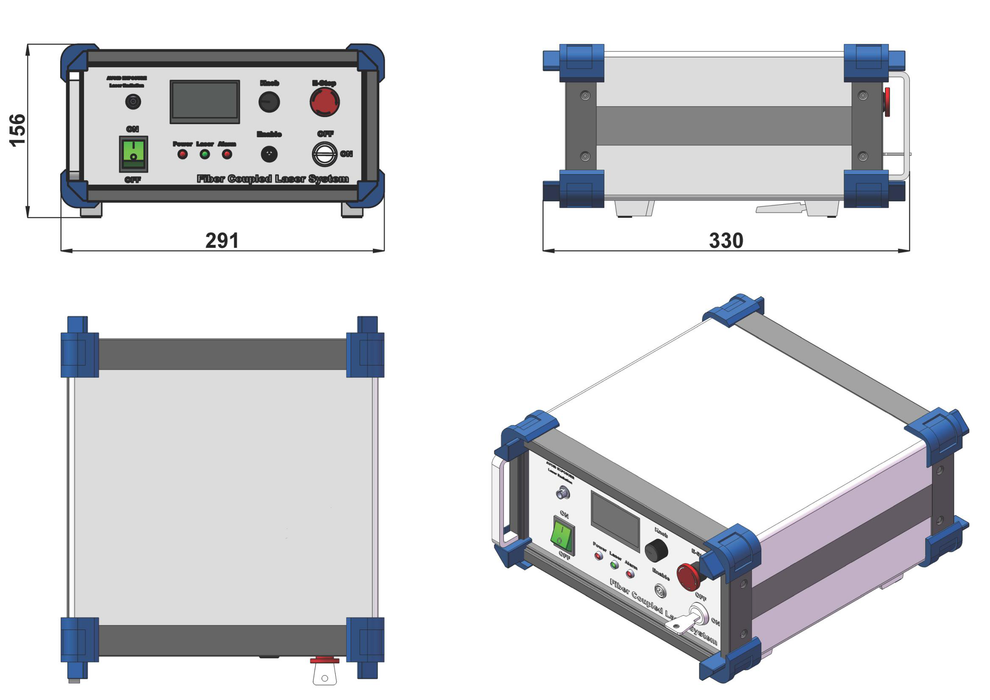

FC-1720 1720 nm Fiber Coupled Laser System
$1,000,000.00
Description: Fiber coupled laser system at 1720nm integrates laser, fiber coupled optics, laser power supply and temperature control into housing.
Applications: medical, biomedical and industrial
Model #: FC-1720
| Model | FC-1720 |
| Wavelength (nm) | 1720±5 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | >1, 100, 500, …, 2500 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1% |
| Fiber Core Diameter (µm) | 400/200 (MM fiber, other fiber core diameters available on request) |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 1 (other lengths available on request) |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10~35 |
| Input Power | 100-240VAC |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Cooling Way | By air |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-1720
Please request a quotation for a real price and lead time.
