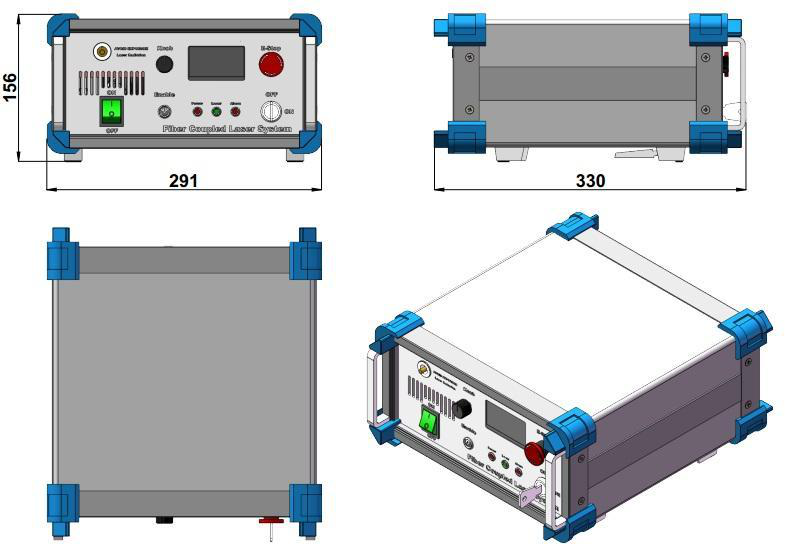

FC-589 589 nm Fiber-Coupled Laser System
$1,000,000.00
Description: It integrates laser, fiber coupled optics, laser power supply and temperature control into housing. They are widely used for medical, biomedical and industrial.
Applications: medical, biomedical and industrial
Model #: FC-589
| Wavelength (nm) | 589±1 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | >1, 10, 20 … , 720 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3%, <5% |
| Fiber Core Diameter (μm) | 400 / 200 (MM fiber, other fiber core diameter available on request) |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 1 (other lengths available on request) |
| Warm-up Time (minutes) | <5 |
| Operating Temperature (℃) | 10~35 |
| Input Power | 100-240VAC |
| Modulation Optional | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Cooling Method | By air |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-589
Please request a quotation for a real price and lead time.
