FC-665 665 nm Fiber Coupled Red Diode Laser System
$1,000,000.00

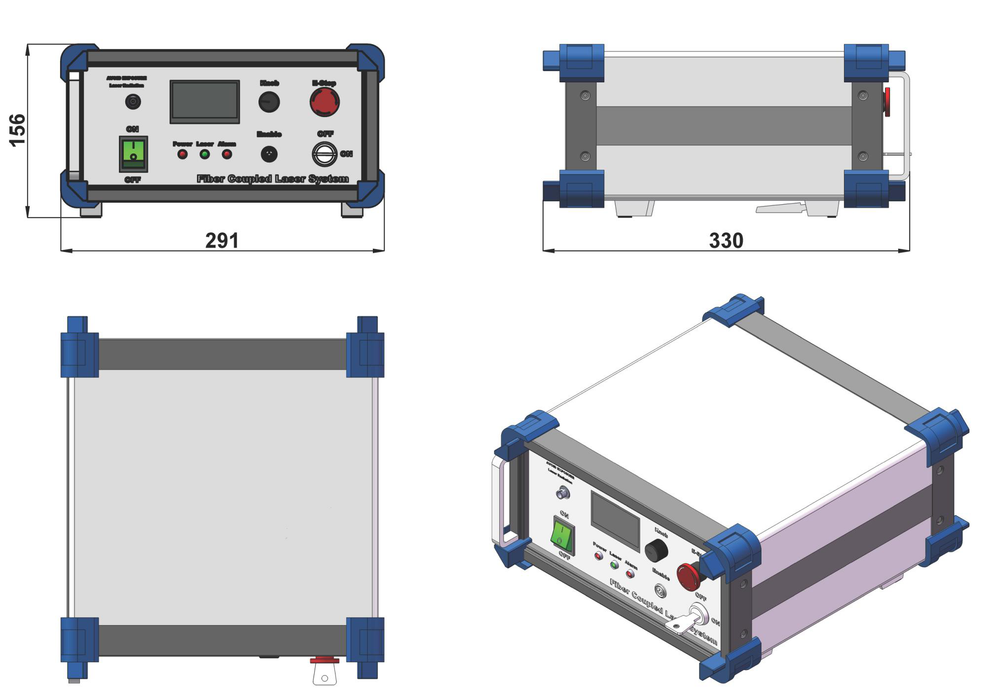

Description: Fiber coupled red diode laser system at 665 nm. It integrates laser, fiber coupled optics, laser power supply and temperature control into housing.
Applications: medical, biomedical and industrial
Model #: FC-665
| Central Wavelength (nm) | 665±5 |
| Operating Mode | CW |
| Output Power After Fiber (W) | 1-3 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, <0.5% |
| Fiber Core Diameter | 400 µm, 0.22 NA |
| Fiber Connector | SMA905, FC/PC optional |
| Fiber Length | 1 m |
| Fiber Jacket | Metal, PVC optional |
| Warm-up Time (minutes) | <5 |
| Cooling Method | Air cooled |
| Operating Temperature (℃) | 10-35 |
| Operating Voltage (VAC) | 100-240 |
| Modulation Option | DC-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-665
Please request a quotation for a real price and lead time.
