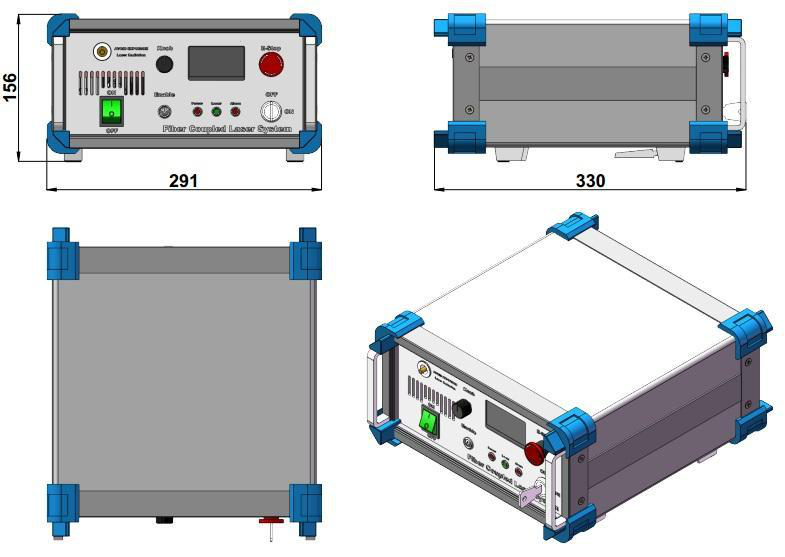

FC-666 666 nm Fiber Coupled Laser System
$1,000,000.00
Description: Fiber coupled laser system at 666 nm. It integrates laser, fiber coupled optics, laser power supply and temperature control into housing.
Applications: medical, biomedical and industrial
Model #: FC-666
| Wavelength (nm) | 666±1 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | >1, 10, 20 …, 180 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3%, <5% |
| Fiber Core Diameter (μm) | 400 / 200 (MM fiber, other fiber core diameters available on request) |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 1 (other lengths available on request) |
| Warm-up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |
| Input Power | 100-240 VAC |
| Modulation Option | TTL on/off, 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz; and Analog modulation optional |
| Cooling Method | Air |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-666
Please request a quotation for a real price and lead time.
