FC-D-635 635 nm Red Diode Laser for Raman Spectroscopy
$1,000,000.00
Description: With narrow spectral bandwidth, spectral purity and a high level of wavelength stability, FC-D-635 laser module is designed specially for Raman spectroscopy, which has integrated laser drivers and thermoelectric coolers together, its compact dimension and convenient functions make it optimal for industrial and medical applications.
Applications: Raman spectroscopy, industrial and medical applications
Model #: FC-D-635
| Model | FC-D-635 (Spectrum Stabilized for Raman Spectroscopy) |
| Central Wavelength (nm) | 635±5 |
| Spectral Line Width (nm) | 0.1 (0.06 optional) |
| Operating Mode | CW |
| Fiber Core Diameter | 100µm, 0.22 NA |
| Fiber Connector | SMA905 |
| Output Power After Fiber (mW) | >1-200 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1% |
| Central Wavelength Stability (rms, over 2 hours) (pm) | <10 |
| Noise of Amplitude (rms, 1-20MHz) | <1% |
| Warm-up Time (minutes) | <5 |
| Operating Temperature (℃) | 20~30 |

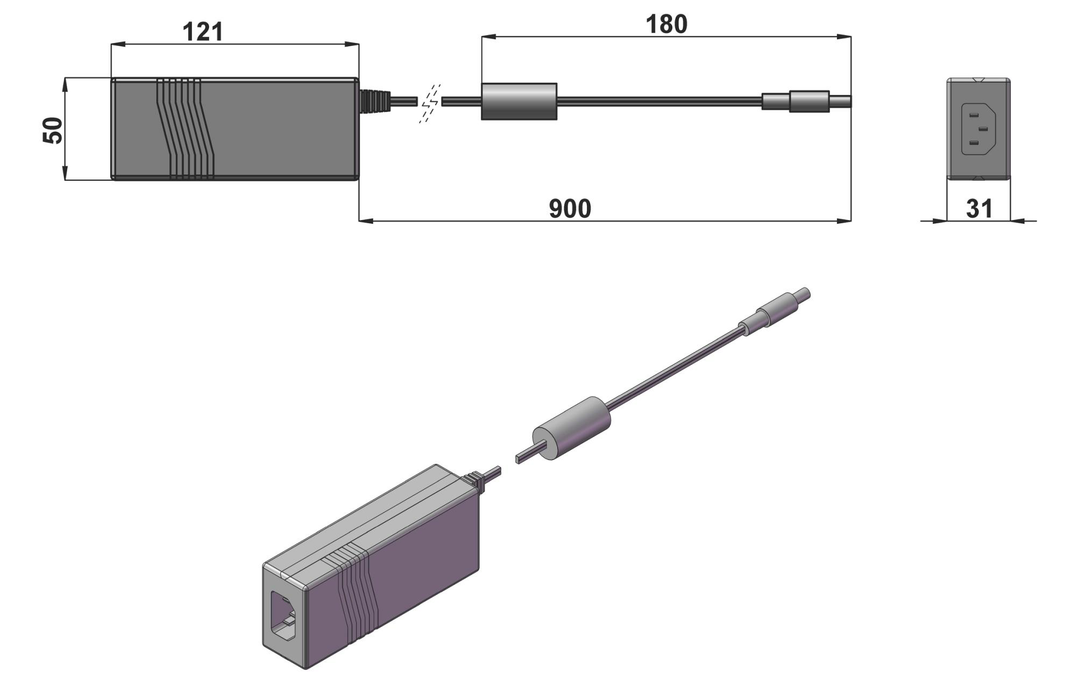

| Power Supply | Adaptor (100-240VAC), 5VDC@5A |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-D-635
Please request a quotation for a real price and lead time.
