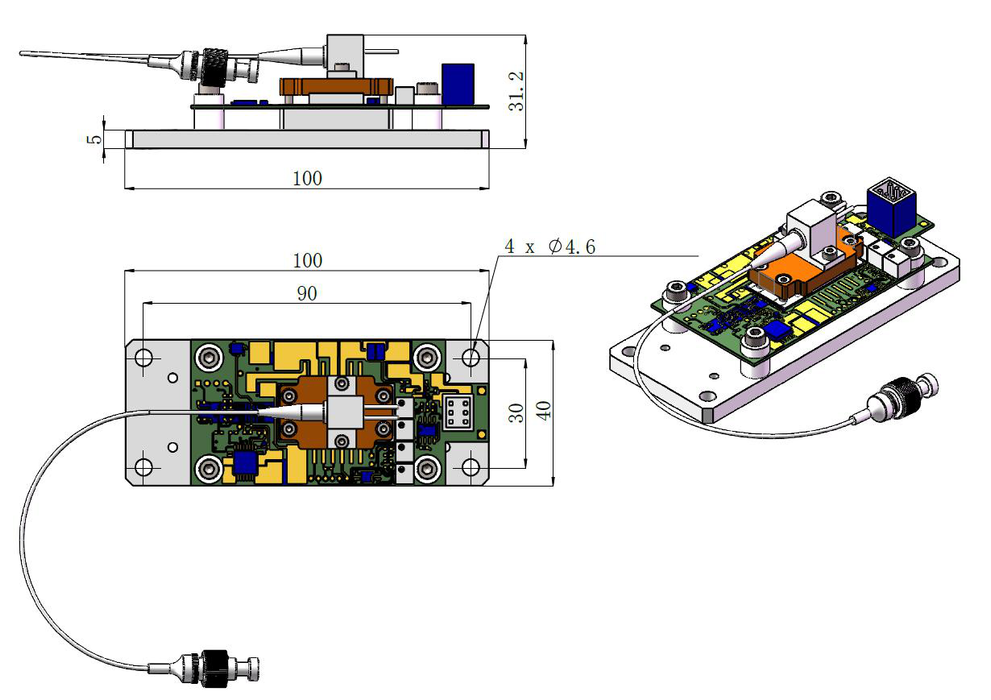

FC-OEM-1742 1742 nm OEM Fiber Coupled Diode Laser
$1,000,000.00
Description: OEM fiber coupled infrared diode laser at 1742 nm with integrated optoelectronics, featuring long lifetime, cost-effectiveness and easy operation.
Applications: medical imaging, flow cytometry, DNA sequencing, OEM integration
Model #: FC-OEM-1742
| Central Wavelength (nm) | 1742±2 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | 1-5 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, <0.5% |
| Fiber Type | SM fiber, PM fiber optional |
| Fiber Core Diameter | 4-9 µm, 0.12 NA |
| Fiber Connector | FC/PC, FC/APC optional |
| Fiber Length | 1 m |
| Fiber Jacket | Metal, PVC optional |
| Transverse Mode | TEM00 |
| Ellipticity | >0.95 |
| M2 After Fiber | ~1.1 |
| Warm-up Time (minutes) | <5 |
| Cooled Method | Conduction |
| Operating Temperature (°C) | 10-35 |
| Operating Voltage (VDC) | 5 VDC |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-OEM-1742
Please request a quotation for a real price and lead time.
