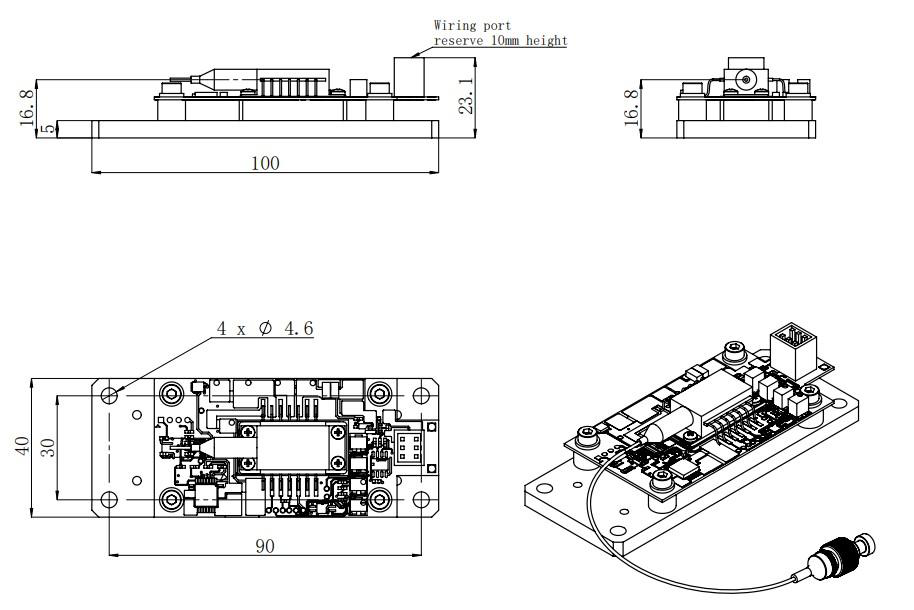

FC-OEM-976 976 nm Fiber Coupled OEM Laser (A/B)
$1,000,000.00
Description: FC-OEM series lasers are fiber-coupled lasers with integrated electronics, specifically for Raman and other spectroscopy applications. Available in A and B configurations.
Applications: Raman spectroscopy, spectroscopy, OEM integration
Model #: FC-OEM-976
| Model | FC-OEM-976 |
| Wavelength (nm) | 976±0.5 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | >1, 100, …, 1000 |
| Power Stability (rms, over 4 hours) | <2%, <1% |
| Spectral Linewidth (nm) | <0.1 |
| Fiber Core Diameter (µm) | 105 |
| Fiber NA | 0.22 |
| Fiber Connector | FC-PC/FC-APC |
| Fiber Length (m) | 1 |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10~35 |
| Input Power | 5VDC |
| Power Supply Cable | Cable with flying leads |
| Communication Interface | RS232 function is optional |
| Cooling Way | By air |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-OEM-976
Please request a quotation for a real price and lead time.
