FC-W-1320H 1320 nm High Power Fiber Coupling Diode Laser System
$1,000,000.00
Description: High power fiber coupling diode laser system at 1320 nm integrating laser diode, fiber coupling optics, laser power supply and temperature control into one housing.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-1320H
| Model | FC-W-1320H |
| Wavelength (nm) | 1320±10 |
| Operating Mode | CW |
| After Fiber Output Power (W) | 10-30 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, (<0.5% optional) |
| Fiber Core Diameter | 400 µm, 0.22 NA |
| Fiber Connector | SMA905, FC/PC optional |
| Fiber Length | 2 m |
| Fiber Jacket | Metal, PVC optional |
| Operating Temperature (°C) | 10-40 |
| Operating Voltage (VAC) | 100-240 |
| Cooled Method | Air cooled |
| Expected Lifetime (hours) | >10000 |

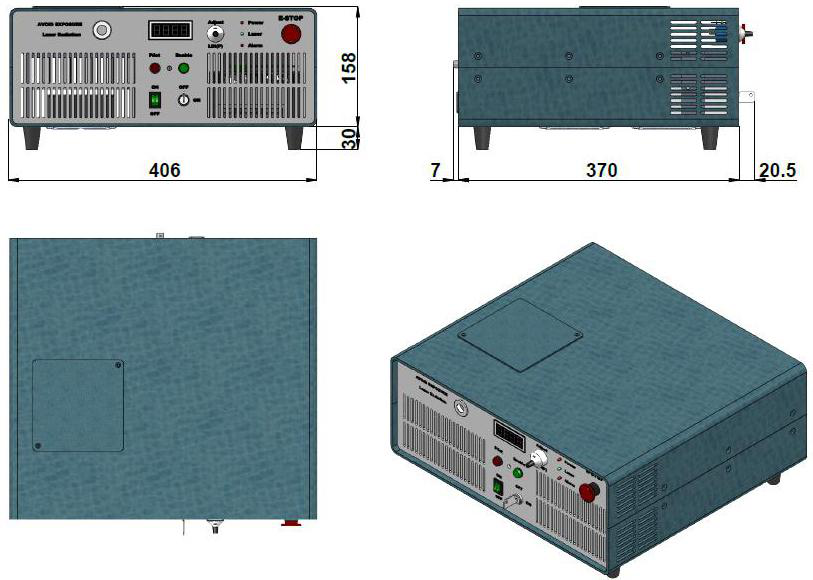

Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-1320H
Please request a quotation for a real price and lead time.
