FC-W-1380H 1380 nm High Power Fiber Coupling Diode Laser System
$1,000,000.00
Description: High power fiber coupling diode laser system at 1380 nm integrating laser diode, fiber coupling optics, laser power supply and temperature control into one housing.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-1380H
| Model | FC-W-1380H |
| Wavelength (nm) | 1380±5 |
| Operating Mode | CW |
| After Fiber Output Power (W) | 1-20 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, (<0.5% optional) |
| Red Pilot Light | Available on request |
| Fiber Core Diameter | 400 µm, 0.22 NA |
| Fiber Connector | SMA905, FC/PC optional |
| Fiber Length | 2 m |
| Fiber Jacket | Metal, PVC optional |
| LED Display | Diode current |
| Operating Temperature (°C) | 10-40 |
| Modulation Option | DC-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz, 30 kHz-100 kHz optional; TTL and Analog optional |
| Operating Voltage (VAC) | 100-240 |
| Cooled Method | Air cooled |

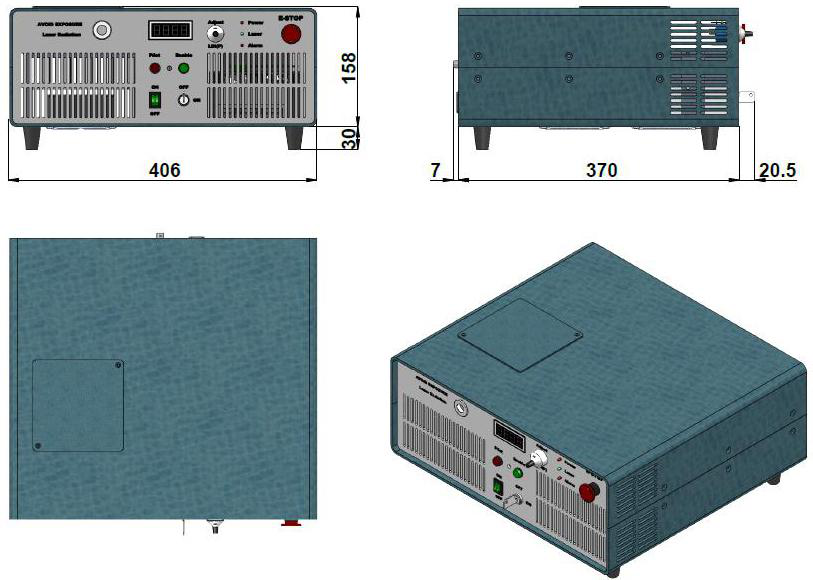

| Dimensions | 370 (L) ×406 (W) ×188 (H) mm |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-1380H
Please request a quotation for a real price and lead time.
