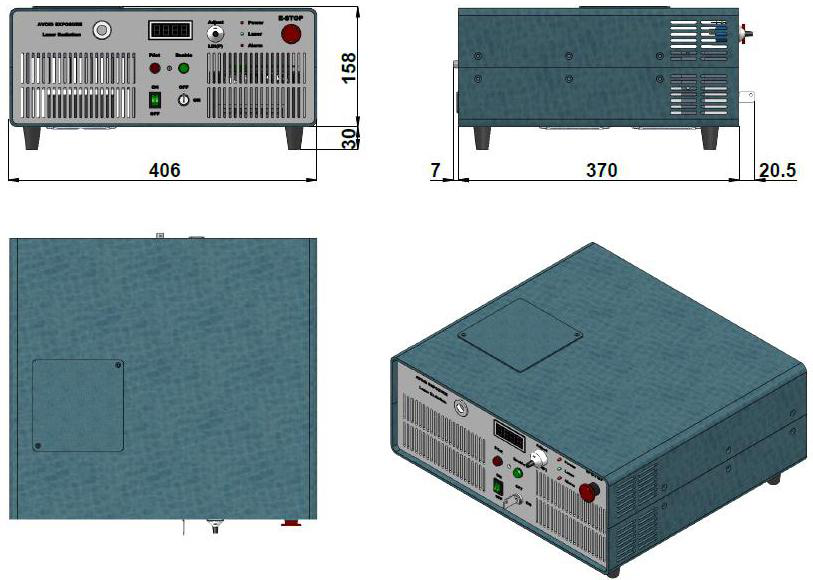

FC-W-1470H 1470 nm High Power Fiber Coupled Diode Laser System
$1,000,000.00
Description: High power fiber coupled laser system at 1470 nm integrating laser diode, fiber coupling optics, laser power supply, LD current and temperature control in one box.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-1470H
| Model | FC-W-1470H |
| Wavelength (nm) | 1470±10 |
| Operating Mode | CW |
| After Fiber Output Power (W) | 10-50 |
| Power Stability (rms, over 4 hours) | <2%, <1%, <0.5% |
| Red Pilot Light | Available on request |
| Fiber Core Diameter (µm) | 400/600 |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 2 |
| LED Display | Diode current |
| Operating Temperature (°C) | 10-40 |
| Modulation Option | TTL or Analog with 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz optional |
| Input Power | 100-240 VAC, 50 to 60 Hz |
| Cooling Way | Air cooled |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-1470H
Please request a quotation for a real price and lead time.
