FC-W-1908B 1908 nm High Power Fiber Coupled Diode Laser System
$1,000,000.00
Description: High power fiber coupled diode laser system at 1908 nm integrating laser diode, fiber coupling optics, laser power supply, LD current and temperature control in one box. Water cooled version available for higher powers.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-1908B
| Model | FC-W-1908B |
| Wavelength (nm) | 1908±10 |
| Operating Mode | CW |
| After Fiber Output Power (W) | >10, 11, …, 20 (air cooled); 20-60 (water cooled, on request) |
| Power Stability (rms, over 4 hours) | <2%, <1%, <0.5% |
| Red Pilot Light | Available on request |
| Fiber Core Diameter (µm) | 400/600 |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 2 |
| LED Display | Diode current |
| Operating Temperature (°C) | 10-40 |
| TTL/Analog Modulation | TTL or Analog with 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz optional |
| Input Power | 100-240 VAC, 50 to 60 Hz |
| Cooling Way | Air Cooled / Water Cooled |

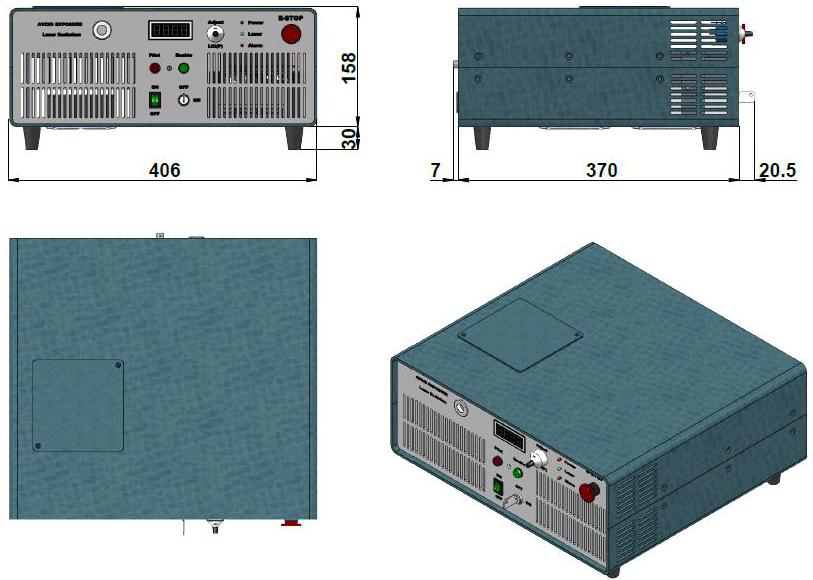

| Dimensions (mm) | 370 (L) ×406 (W) ×188 (H) (air cooled); water cooled on request |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-1908B
Please request a quotation for a real price and lead time.
