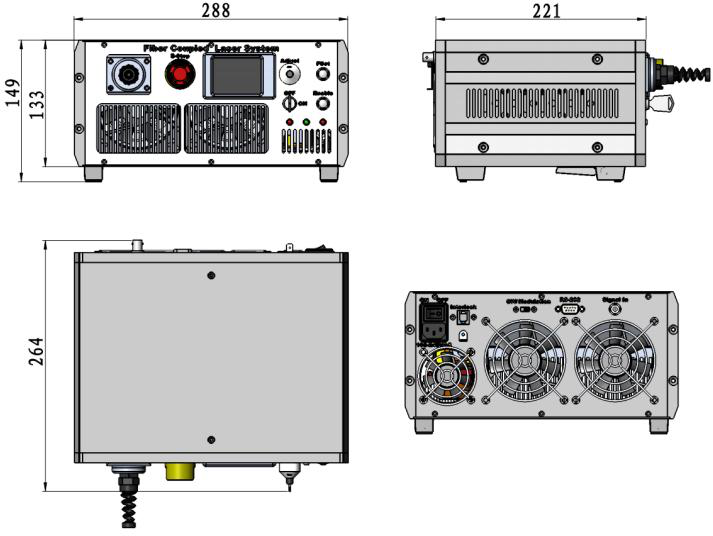

FC-W-444C 444 nm High Power Fiber Coupling Diode Laser System
$1,000,000.00
Description: The 444 nm diode laser features an ultra-compact design, a long lifetime, and easy operation. It is also easy to install in customers’ equipment.
Applications: industrial, medical, biomedical
Model #: FC-W-444C
| Model | FC-W-444C |
| Wavelength (nm) | 444±1 |
| Operating Mode | CW |
| Output Power (W) @ after 400µm Fiber¹ | 25-30 |
| Cooled Method | Air cooled |
| Fiber Core Diameter (µm) | 400, 600, 0.22NA |
| Fiber Connector | SMA905, FC optional |
| Fiber Length² | 1m |
| Fiber Jacket | PVC, Metal optional |
| Power Stability (rms, 4 hours±3℃) | <2%, <1% |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 0-30 |
| Operating Voltage (VAC) | 100-240 |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-50kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-444C
Please request a quotation for a real price and lead time.
