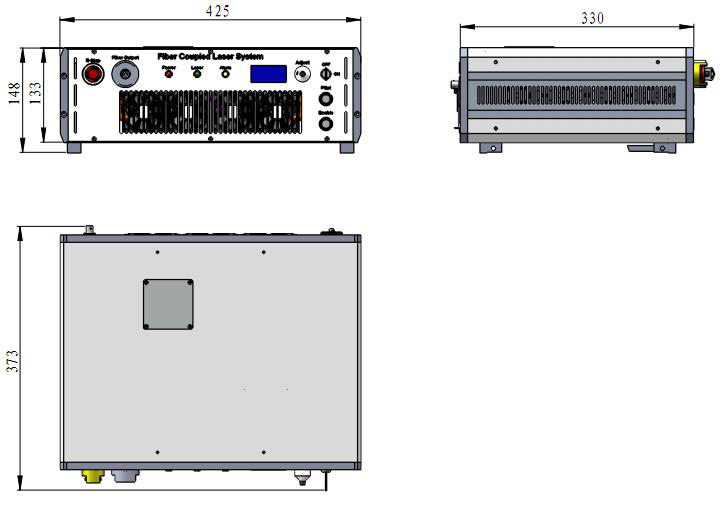

FC-W-793H 793 nm High Power Fiber Coupled Laser System
$1,000,000.00
Description: High power fiber coupled laser system at 793nm, widely used in scientific research, industrial and medical applications.
Applications: scientific research, industrial and medical applications
Model #: FC-W-793H
| Model | FC-W-793H |
| Wavelength (nm) | 793±5 |
| Operating Mode | CW |
| Output Power After Fiber (W)¹ | 1-5 / 5-50 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Fiber Core Diameter | 400µm, 0.22 NA |
| Fiber Connector | SMA905 |
| Fiber Length² | 1m |
| Fiber Jacket | Metal, PVC optional |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 10-35 |
| Operating Voltage (VAC) | 100-240 |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-793H
Please request a quotation for a real price and lead time.
