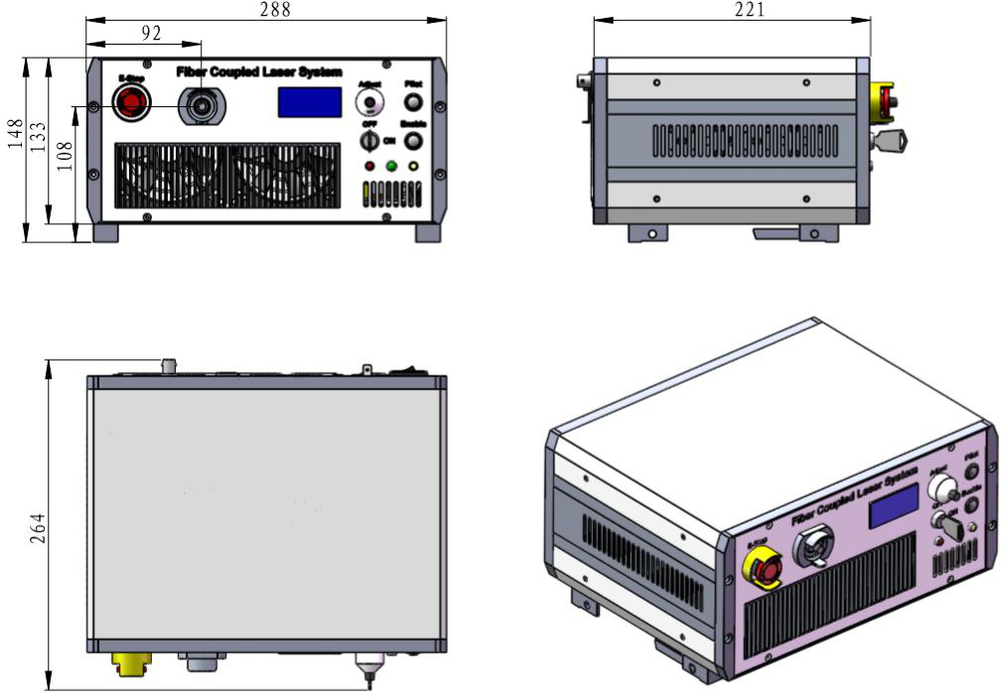

FC-W-940 940 nm High Power Fiber Coupled Diode Laser System
$1,000,000.00
Description: The FC-W-940 series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions make it very suitable for pumping, scientific research, industrial and medical applications.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-940
| Model | FC-W-940 |
| Wavelength (nm) | 940±10 |
| Operating Mode | CW |
| After Fiber Output Power (W)¹ | 30-50 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, (<0.5% optional) |
| Fiber Core Diameter | 400µm, 0.22 NA |
| Fiber Connector | SMA905, FC/PC optional |
| Fiber Length² | 2m |
| Fiber Jacket | Metal, PVC optional |
| LED Display | Diode current |
| Operating Temperature (°C) | 10-40 |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional; TTL and Analog optional |
| Operating Voltage (VAC) | 100-240 |
| Cooled Method | Air cooled |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-940
Please request a quotation for a real price and lead time.
