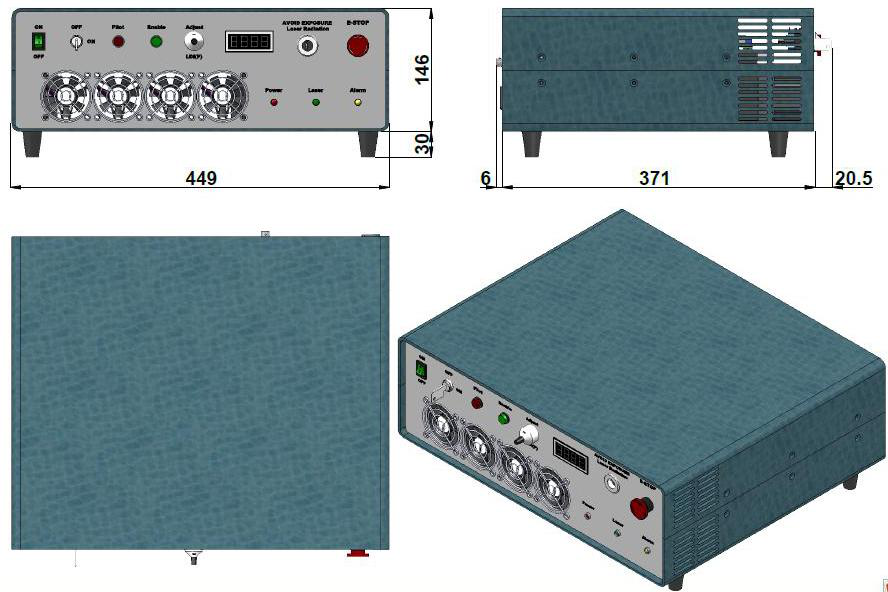

FC-W-980H-I 980 nm High Power Fiber Coupled Diode Laser System
$1,000,000.00
Description: The FC-W-980H-I series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
Applications: pumping, scientific research, industrial and medical applications
Model #: FC-W-980H-I
| Model | FC-W-980H-I |
| Model | FC-W-980H-I |
| Wavelength (nm) | 980±10 |
| Operating Mode | CW |
| After Fiber Output Power (W) | >110, 120, …, 150 (high power can be customized) |
| Power Stability (rms, over 4 hours) | <0.5%, <1%, <2% |
| Red Pilot Light | Available on request |
| Fiber Core Diameter (µm) | 200/400/600 |
| Fiber NA | 0.22 |
| Fiber Connector | SMA905 |
| Fiber Length (m) | 2 |
| LED Display | Diode current |
| Operating Temperature (℃) | 10~40 |
| TTL / Analog Modulation | TTL or Analog with 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz optional |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-980H-I
Please request a quotation for a real price and lead time.
