FL-H-515-PS 515 nm High Power All-Fiber Picosecond Pulsed Laser
$1,000,000.00
Description: All fiber picosecond pulsed laser at 515nm is made features of short pulse duration, high repetition rate, high stability and good beam quality.
Applications: sapphire marking, ceramic cutting, semiconductor cutting, film scribing, physics experiment
Model #: FL-H-515-PS
| Model | FL-H-515-PS |
| Wavelength (nm) | 515±1 |
| Operating Mode | Pulsed |
| Average Power (W)¹ | 1-5 |
| Single Pulse Energy (nJ) | 62.5 (62.5 nJ @ 80 MHz); 125 (125 nJ @ 40 MHz) |
| Repetition Rate (MHz)² | 20-120 |
| Pulse Duration (ps) | <8 ps; or one fixed value between 10-150 ps |
| Peak Power (kW) | 6.25 kW @ 80 MHz/10 ps; 12.5 kW @ 40 MHz/10 ps |
| Ave Power Stability (rms, 4 hours ±3°C) | <2%, <1% |
| Warm-Up Time (minutes) | <10 |
| Transverse Mode | TEM00 |
| M² | <1.2 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Beam Diameter at the Aperture (1/e², mm) | ~2 |
| Polarization Ratio | >100:1, Horizontal |

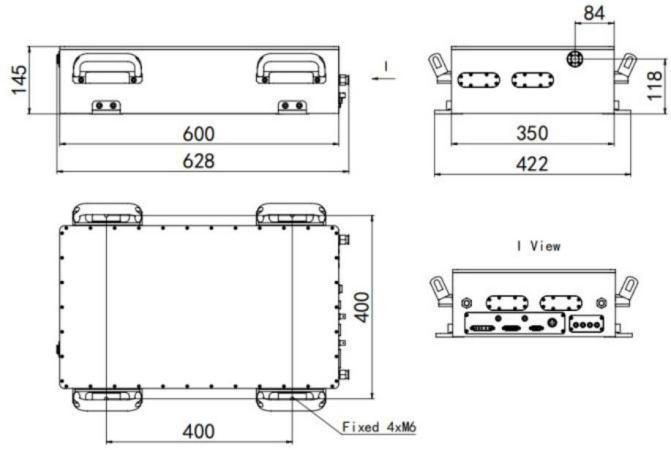

| Beam Height from Base Plate (mm) | 118 |
| Cooled Method | Air cooled |
| Operating Temperature (℃) | 15-35 |
| Power Supply (100-240VAC) | 12V/6.67A |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FL-H-515-PS
Please request a quotation for a real price and lead time.
